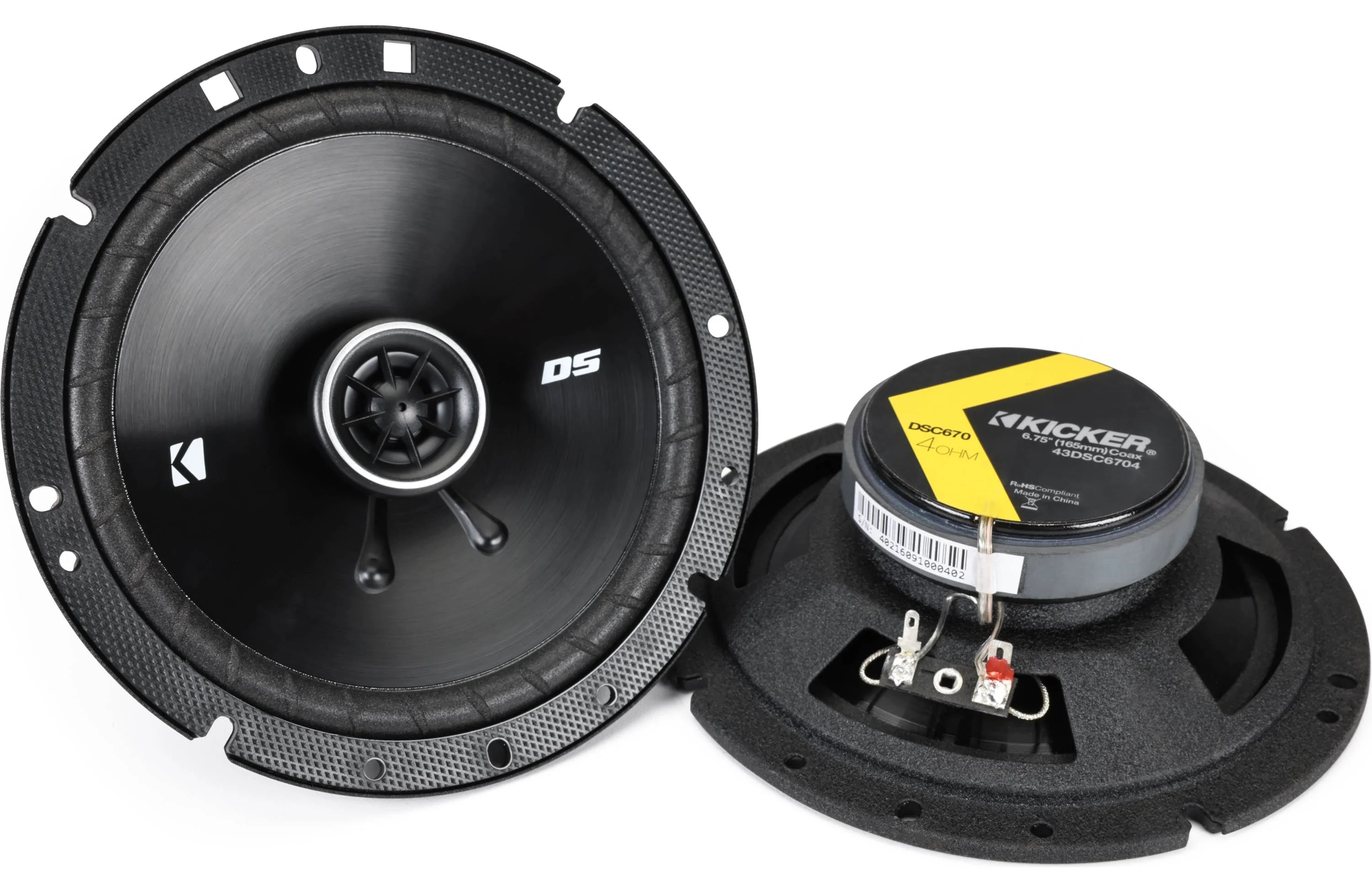

Kicker DSC674 DS Series 6.75" Speakers

Highlights:

• 2-way car speakers (pair)
• 6-3/4" polypropylene woofer with ribbed polyester foam surround
• 1/2" PEI balanced dome tweeter
• power range: handles up to 60 watts RMS (240 watts peak power)
• frequency range: 40-20,000 Hz
• sensitivity: 90 dB
• top-mount depth: 1-7/8"
• impedance: 4 ohms
• grilles included
• warranty: 2 years

Specifications
Model
DSC670
Speaker Design
2 - Way
Woofer [in, mm]
6-3/4, 165
Mid [in, mm]
n/a
Tweeter [in, mm]
1/2, 13
Rated Impedance [ohm]
4
Peak Power Handling [Watts]
240
Continuous Power Handling [Watts RMS]
60
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
40-20k
Mounting Hole Diameter [in, mm]

5-1/2, 140
Top Mount Depth [in, mm]

3/16, 4
Bottom Mount Depth [in, mm]

1-13/16, 47
Tweeter Protrusion [in, mm]
0

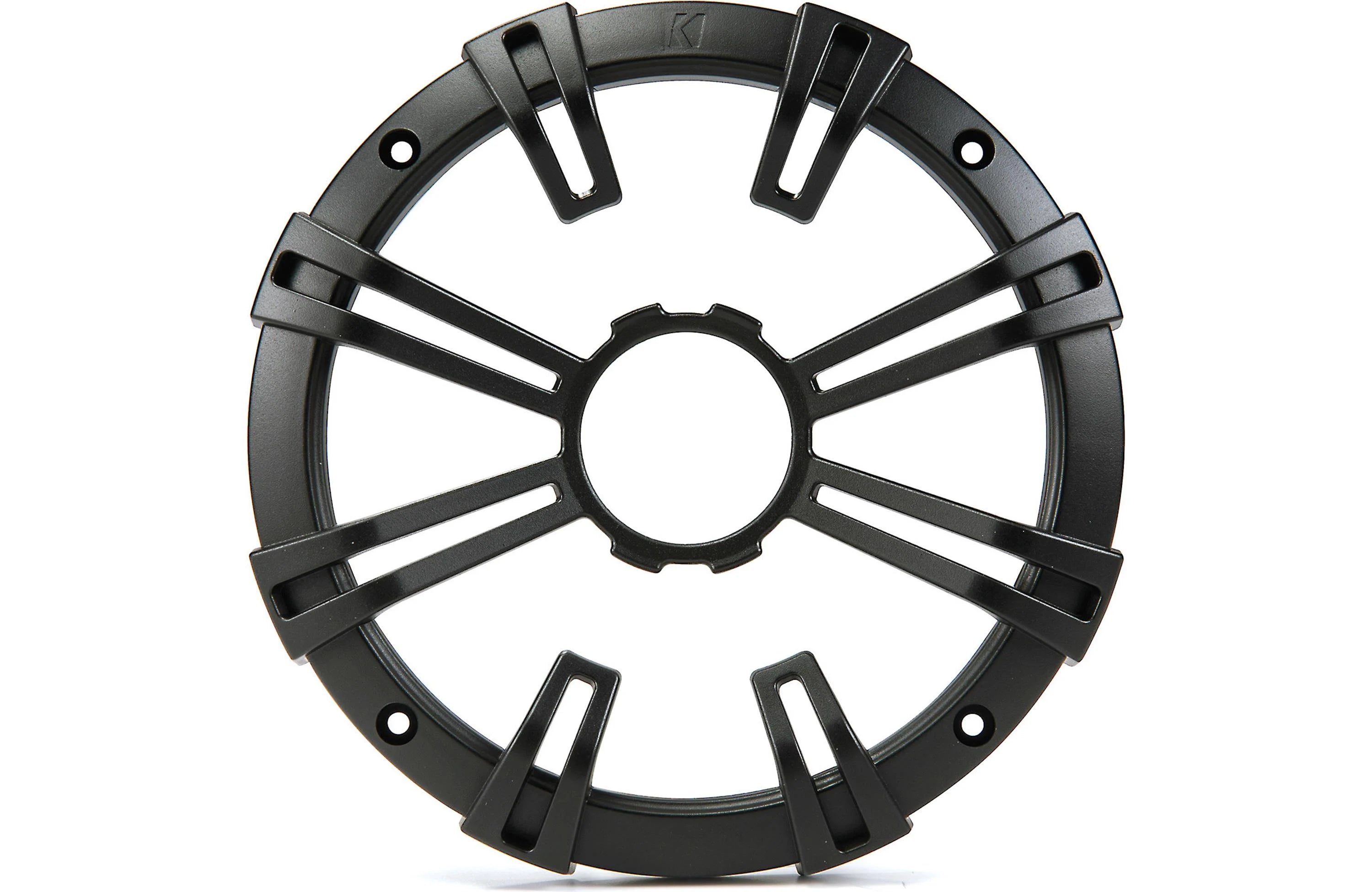

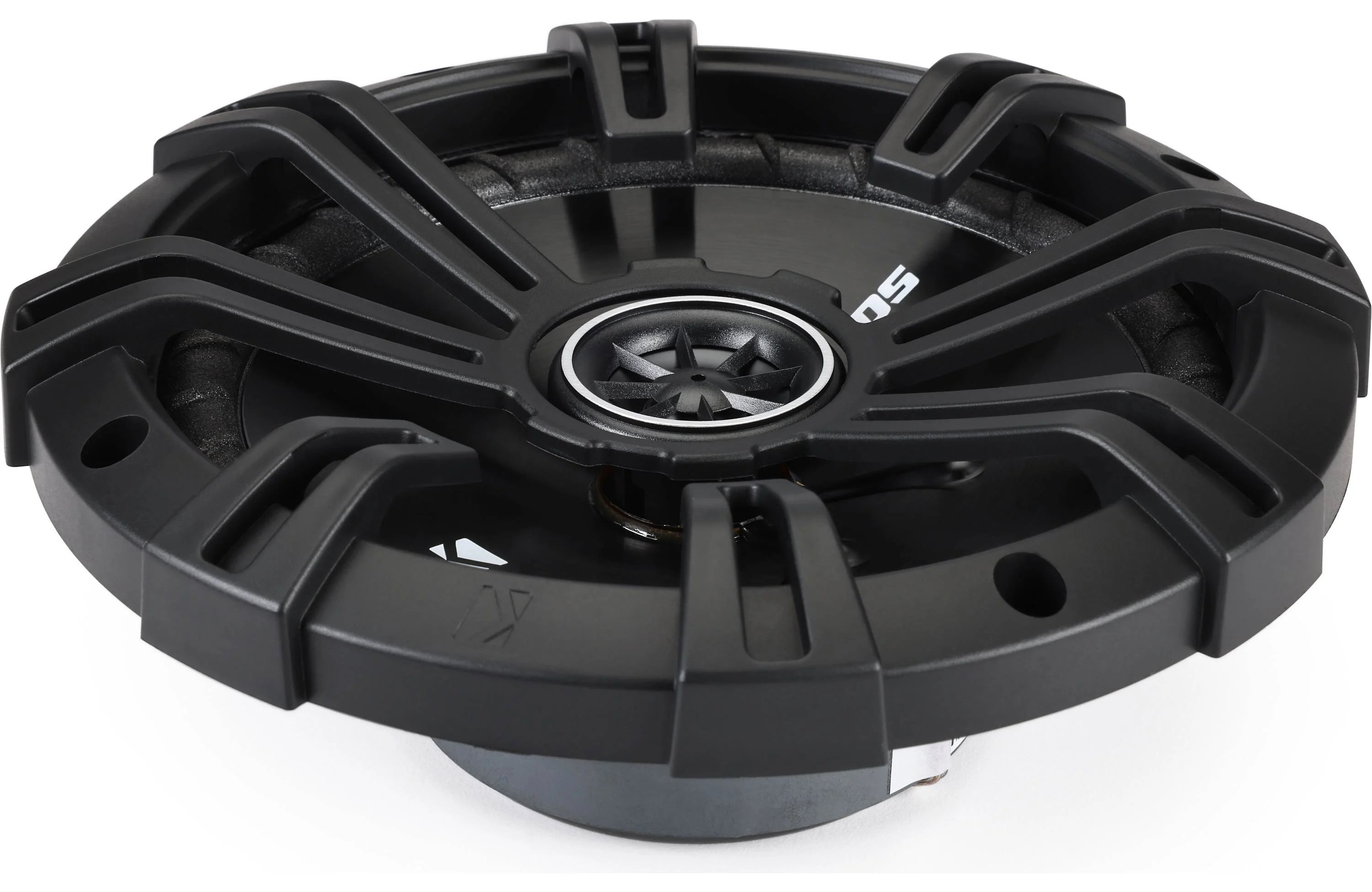

Grilles
Yes

Tweeter Magnet Material
Neodymium
Tweeter Dome Material

PEI (polyether imide)
Tweeter Design

Balanced dome
Woofer Cone Material

Polypropylene
Woofer Surround Material

Polyester foam
