Highlights:

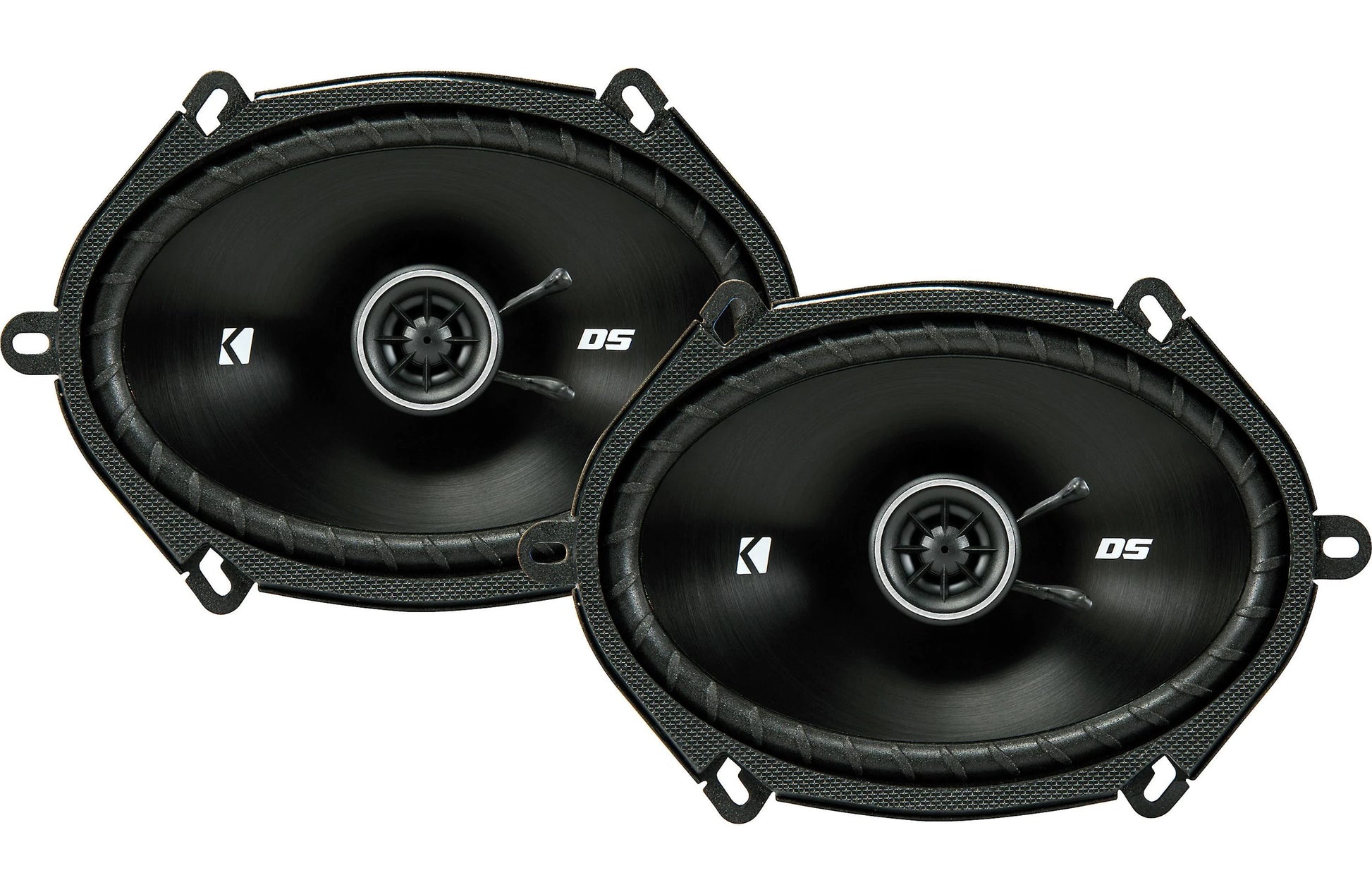

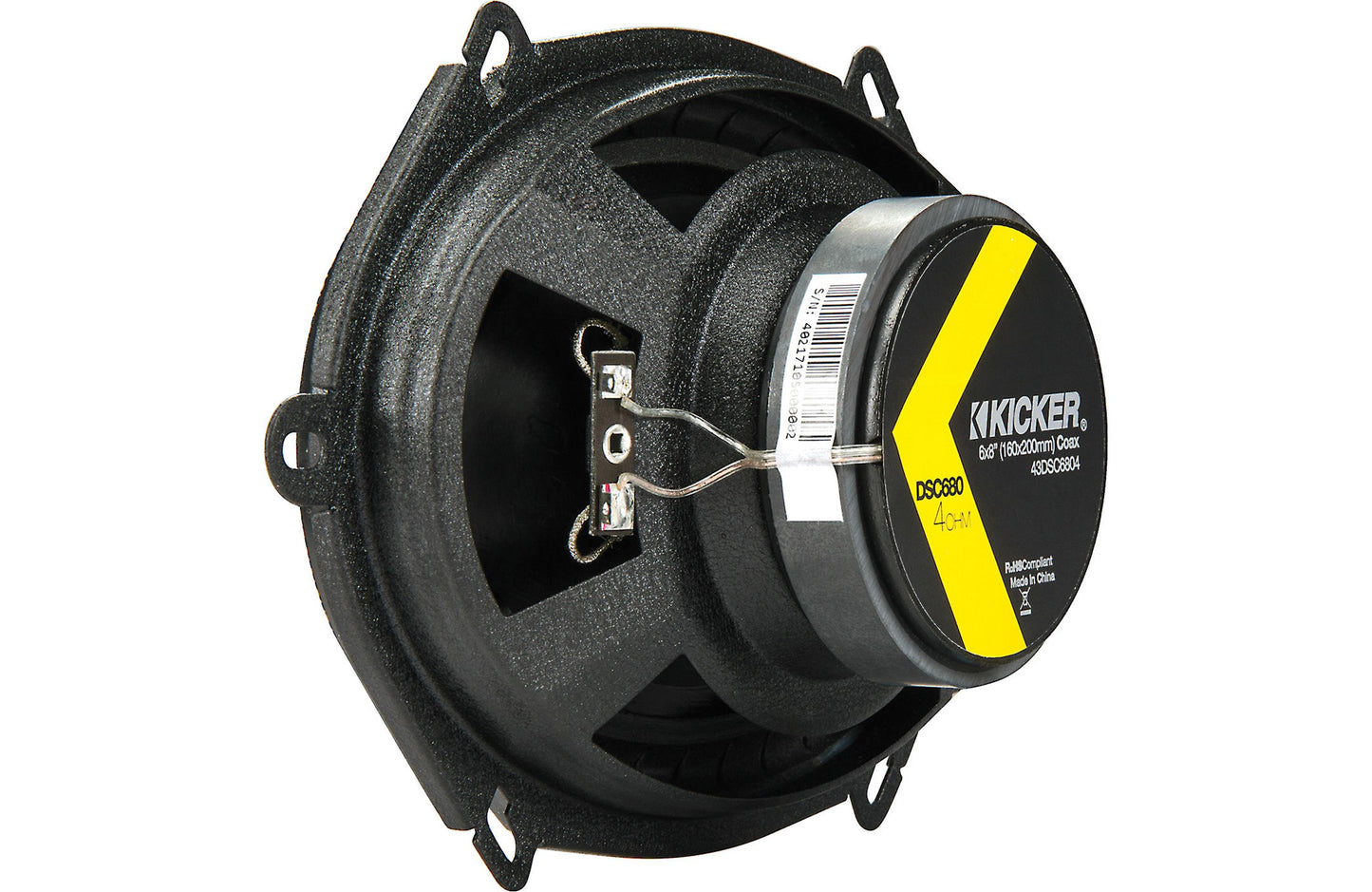

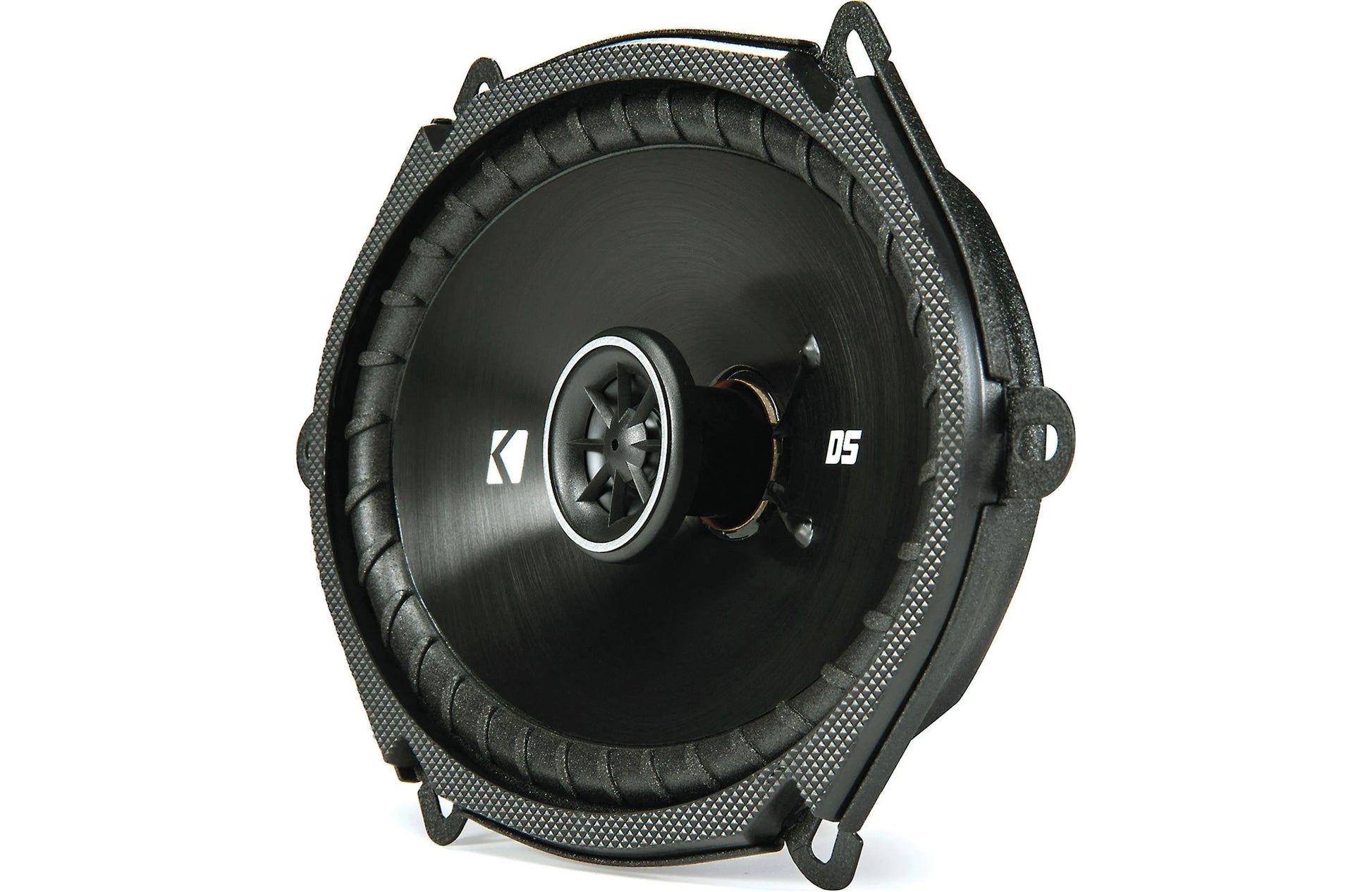

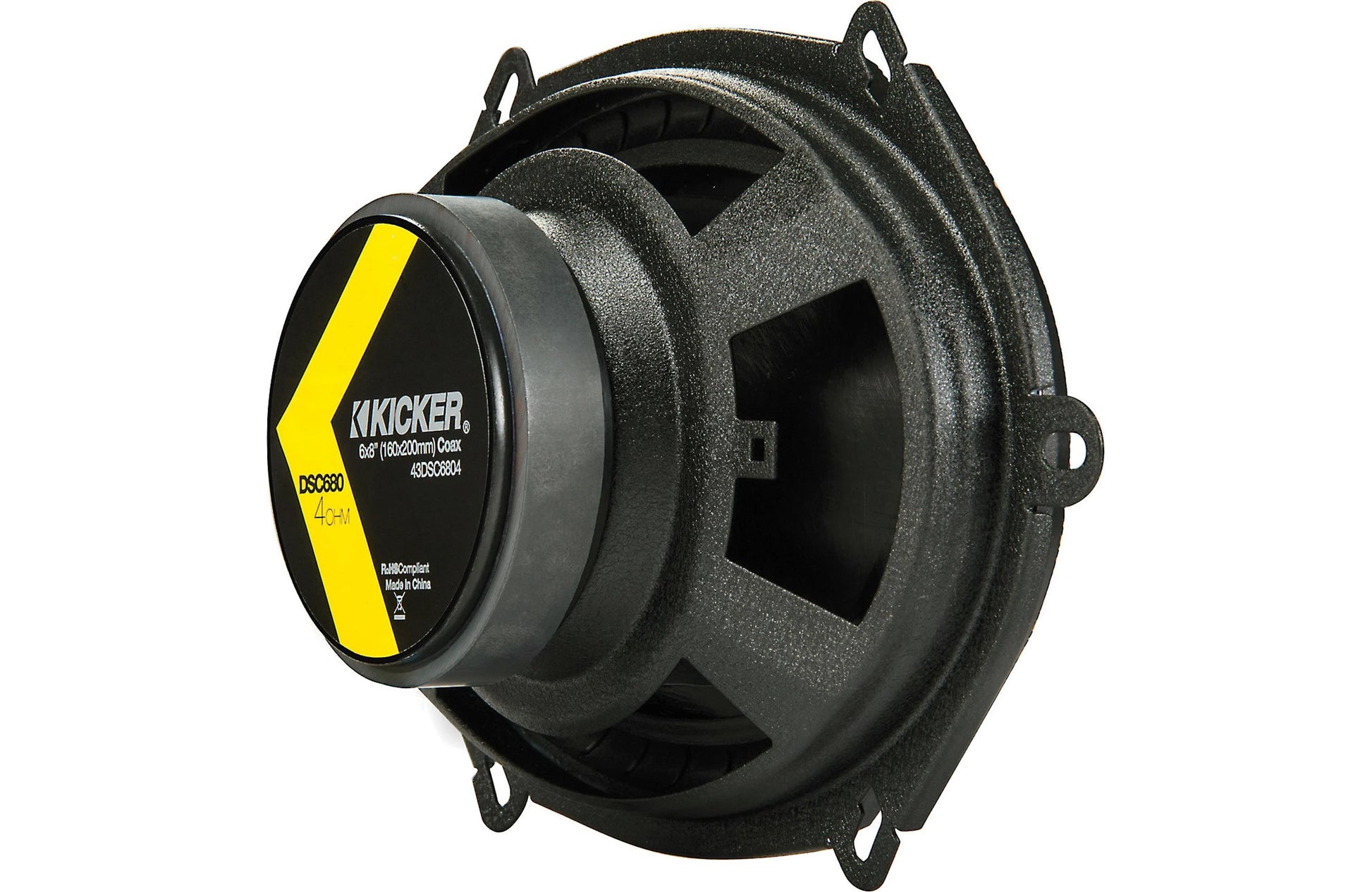

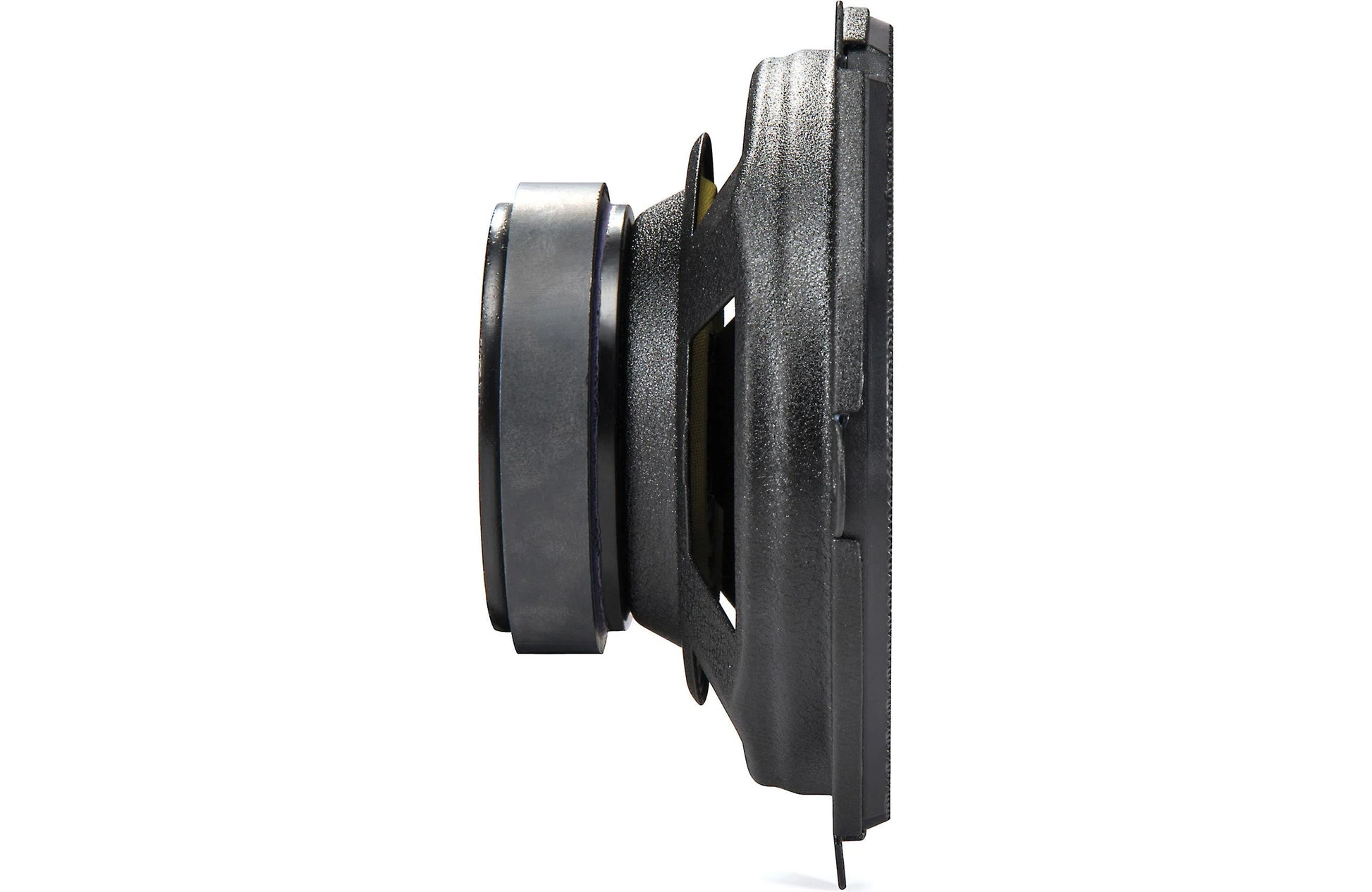

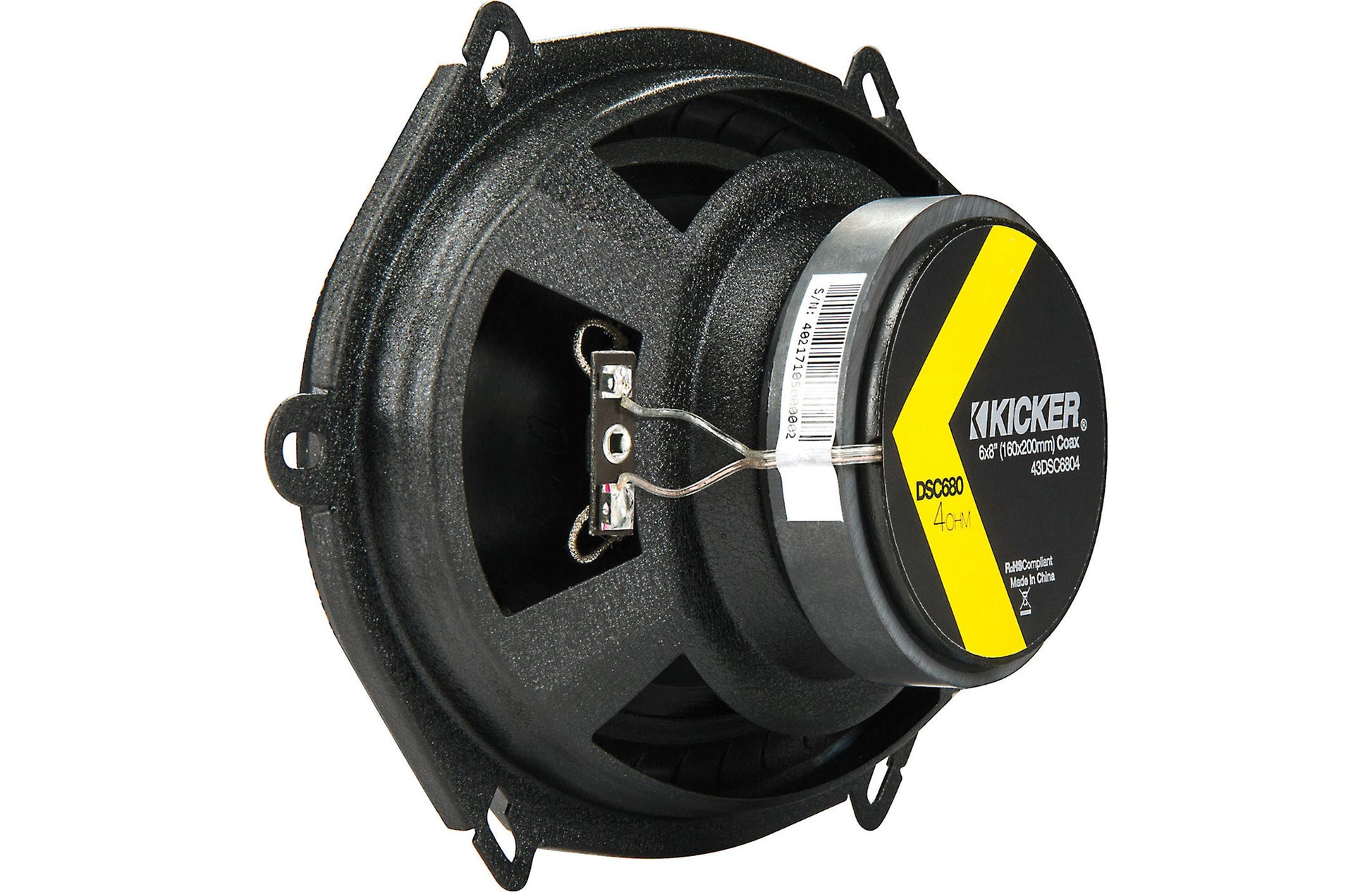

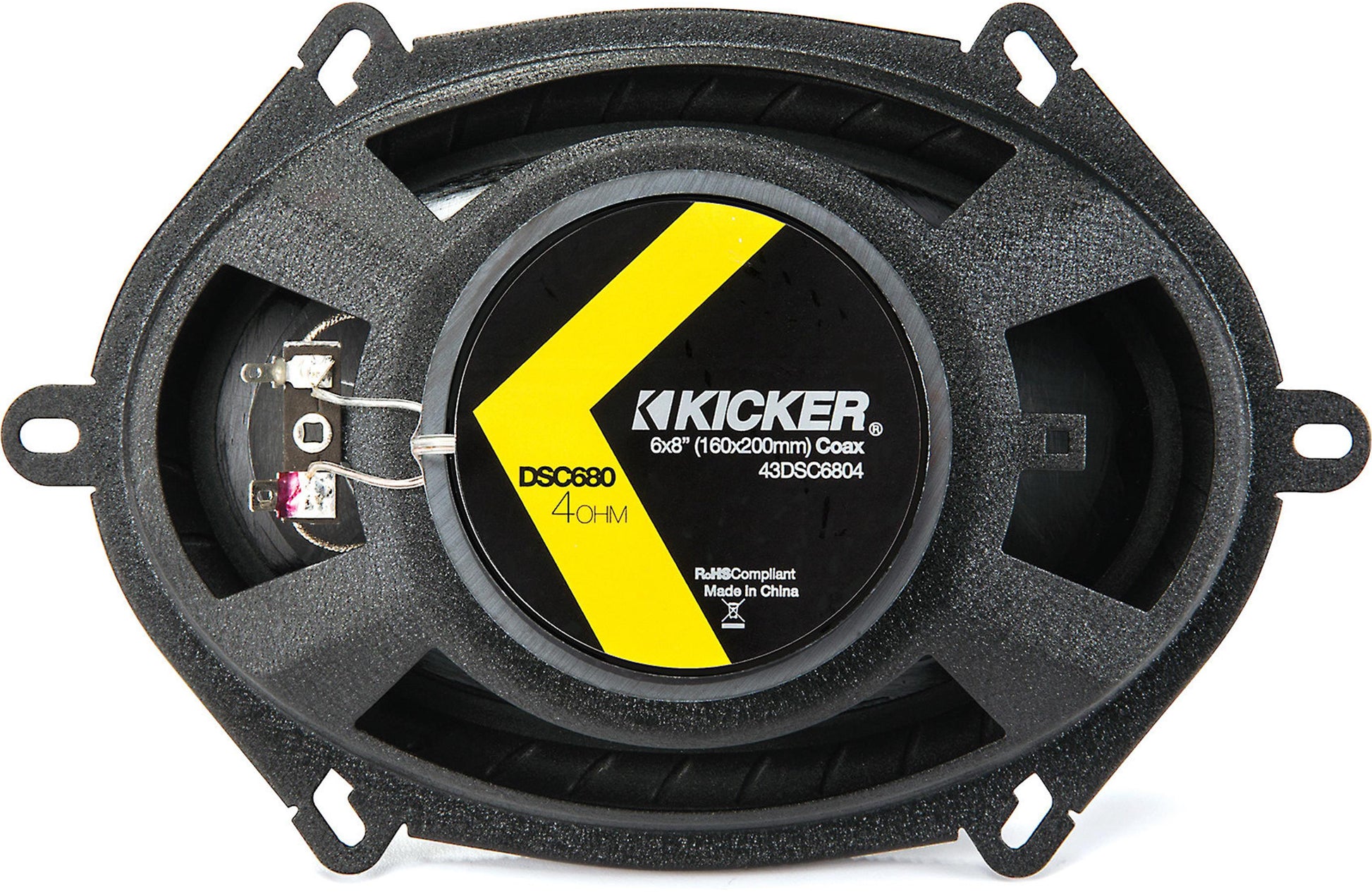

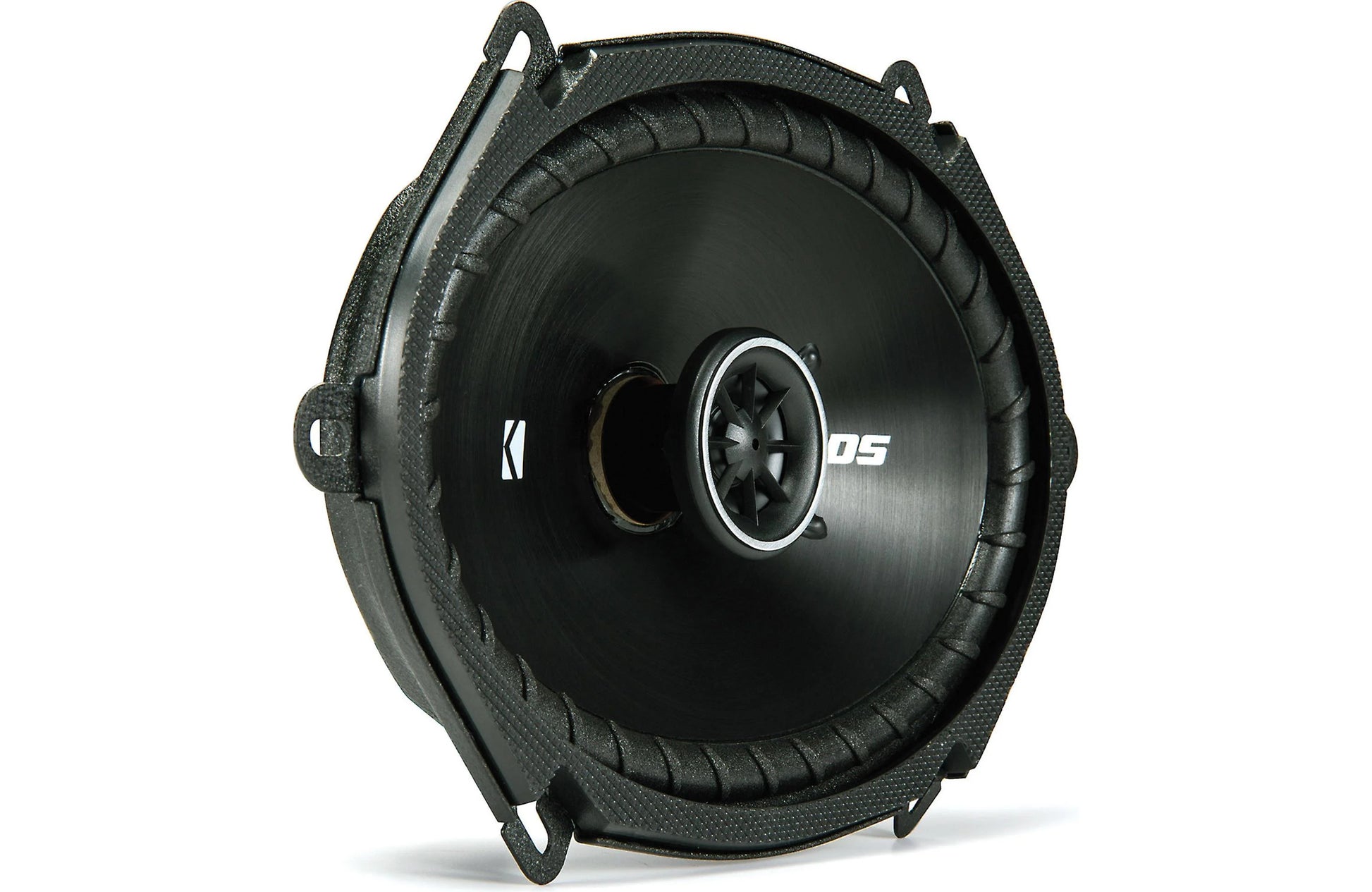

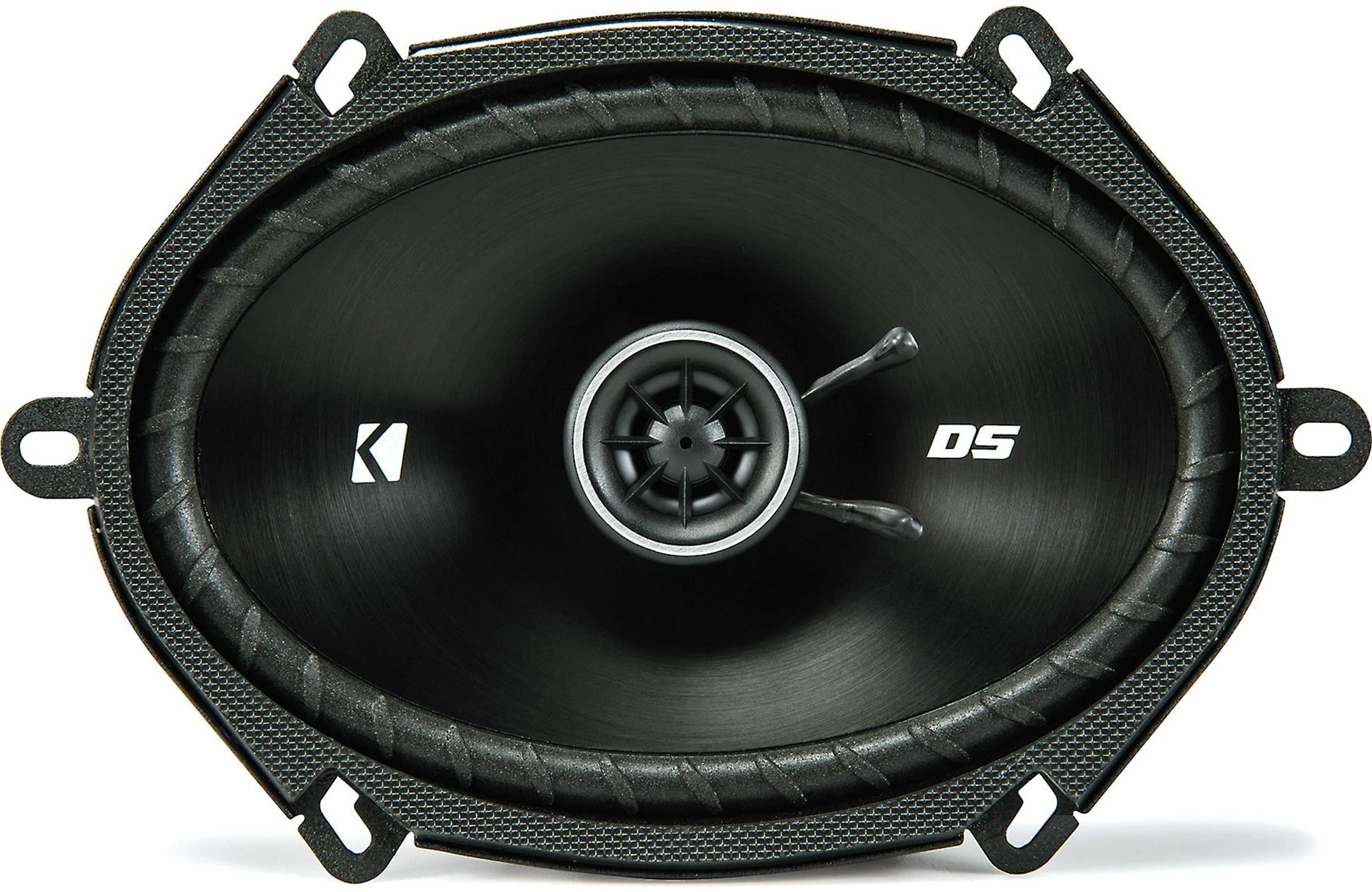

- 2-way car speakers (pair)
- 6"x8" polypropylene woofer with ribbed polyester foam surround
- 1/2" PEI balanced dome tweeter
- handles up to 50 watts RMS (200 watts peak power)
- frequency range: 45-20,000 Hz
- sensitivity: 90 dB
- top-mount depth: 2-5/16"
- impedance: 4 ohms
- grilles not included
- warranty: 2 years
Specifications
Model
DSC680
Speaker Design
2 - Way
Woofer [in, mm]
6x8, 160x200
Mid [in, mm]
n/a
Tweeter [in, mm]
1/2, 13
Rated Impedance [ohms]
4
Peak Power Handling [Watts]
200
Continuous Power Handling [Watts RMS]
50
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
45-20k
Mounting Hole Diameter [in, mm]
5x7 3/16, 126x182

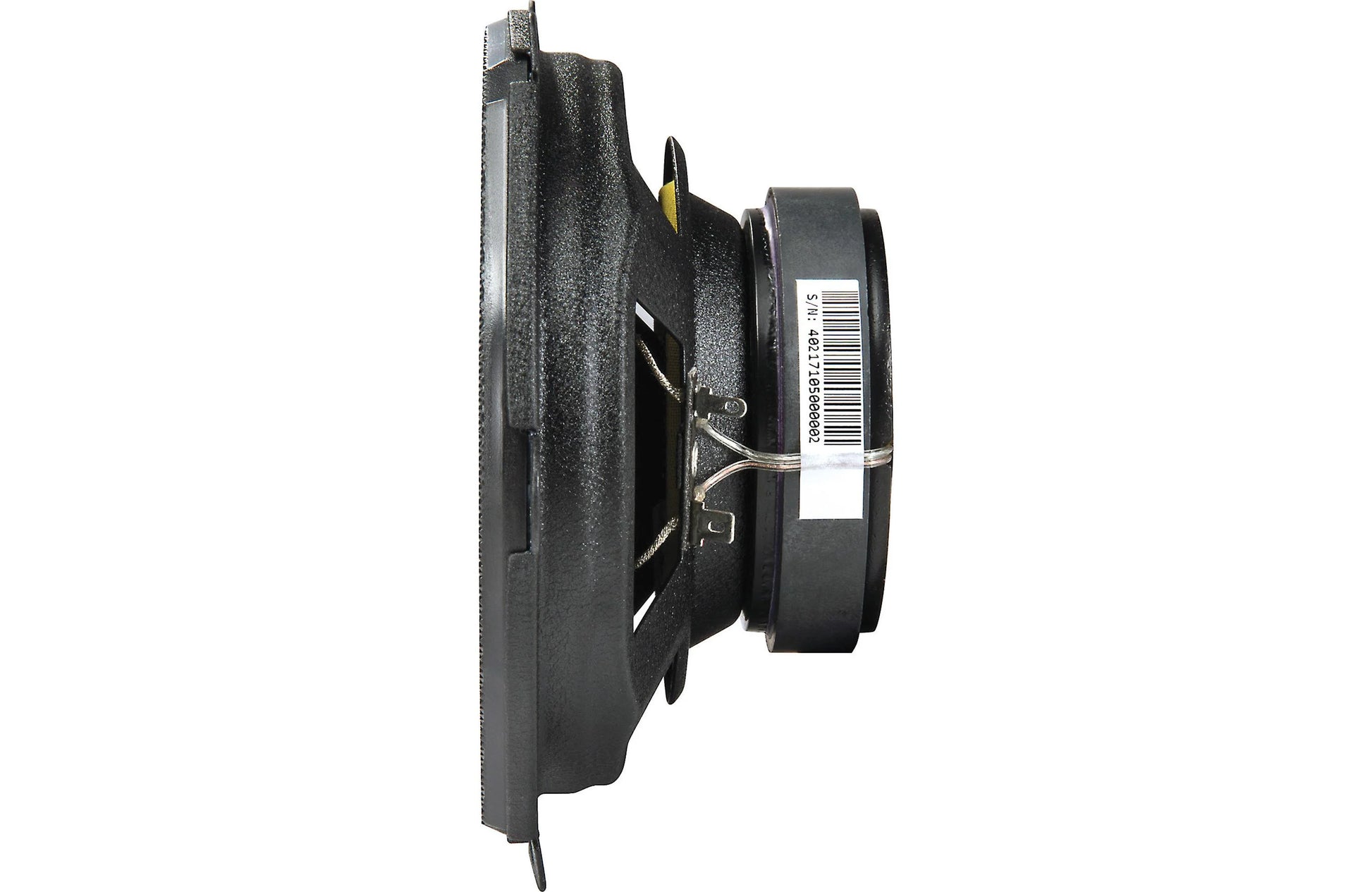

Top Mount Depth [in, mm]
3/8, 9
Bottom Mount Depth [in, mm]
2-3/16, 56
Tweeter Protrusion [in, mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI (polyether imide)
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
