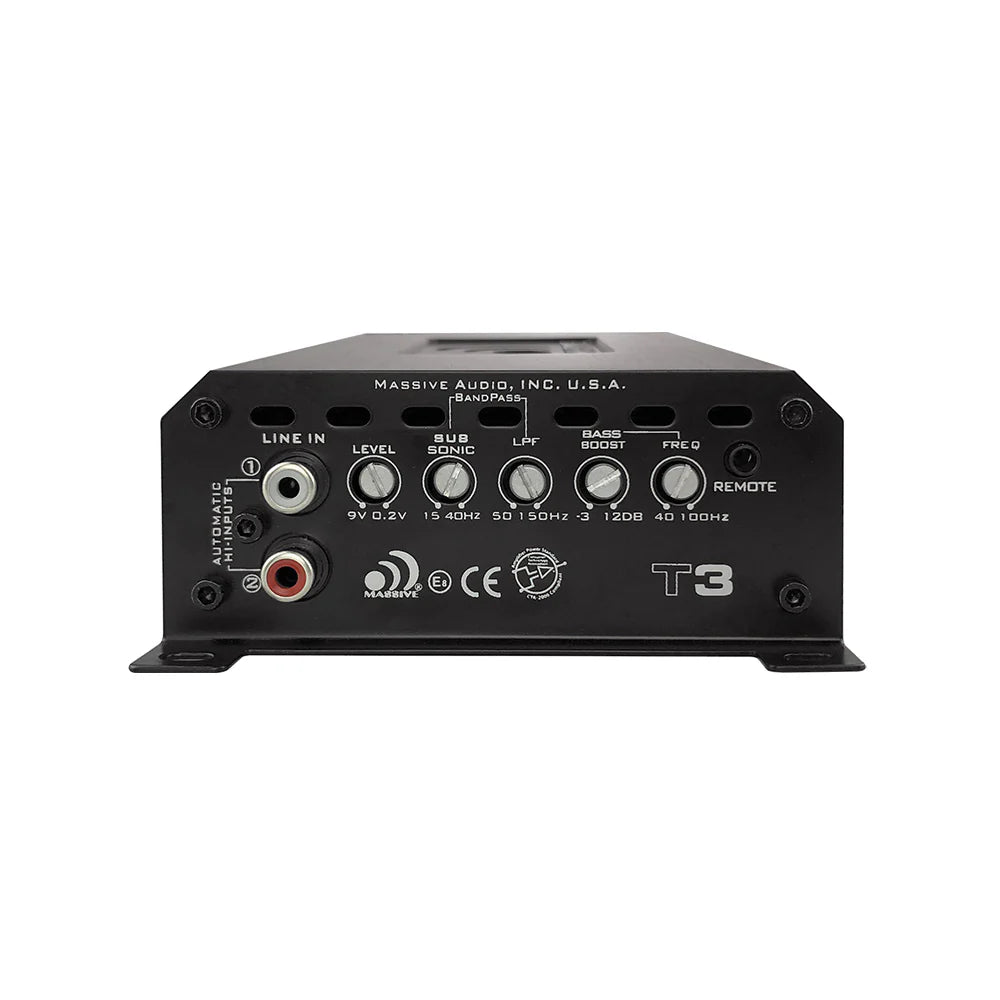

Massive Audio T3 Trident 1-Channel Marine Amplifier

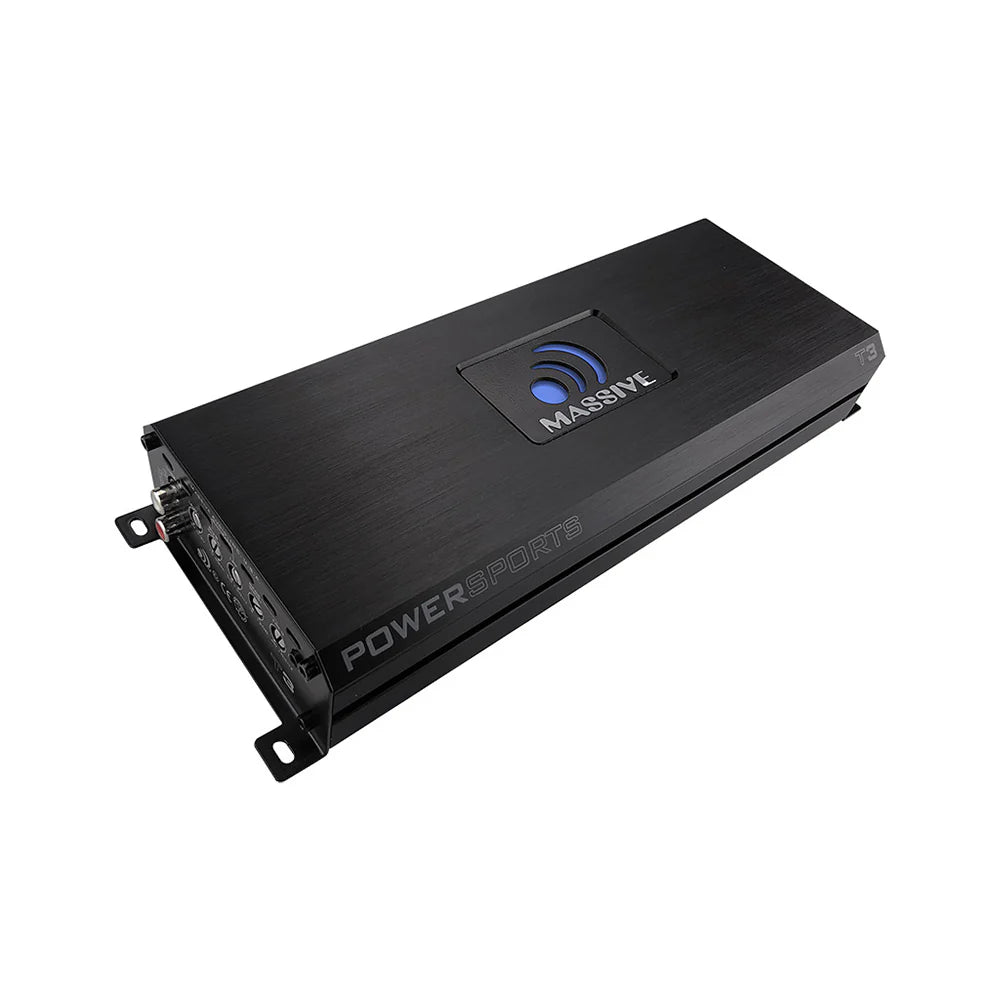

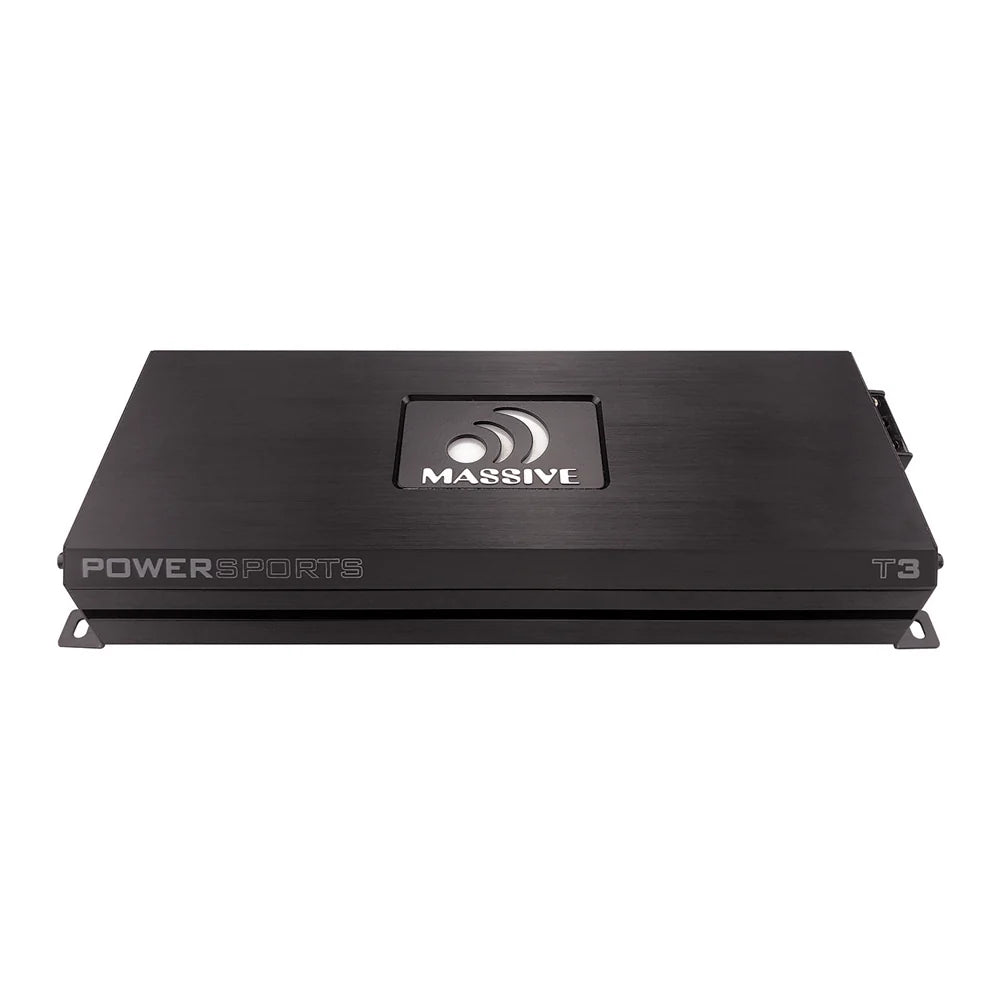

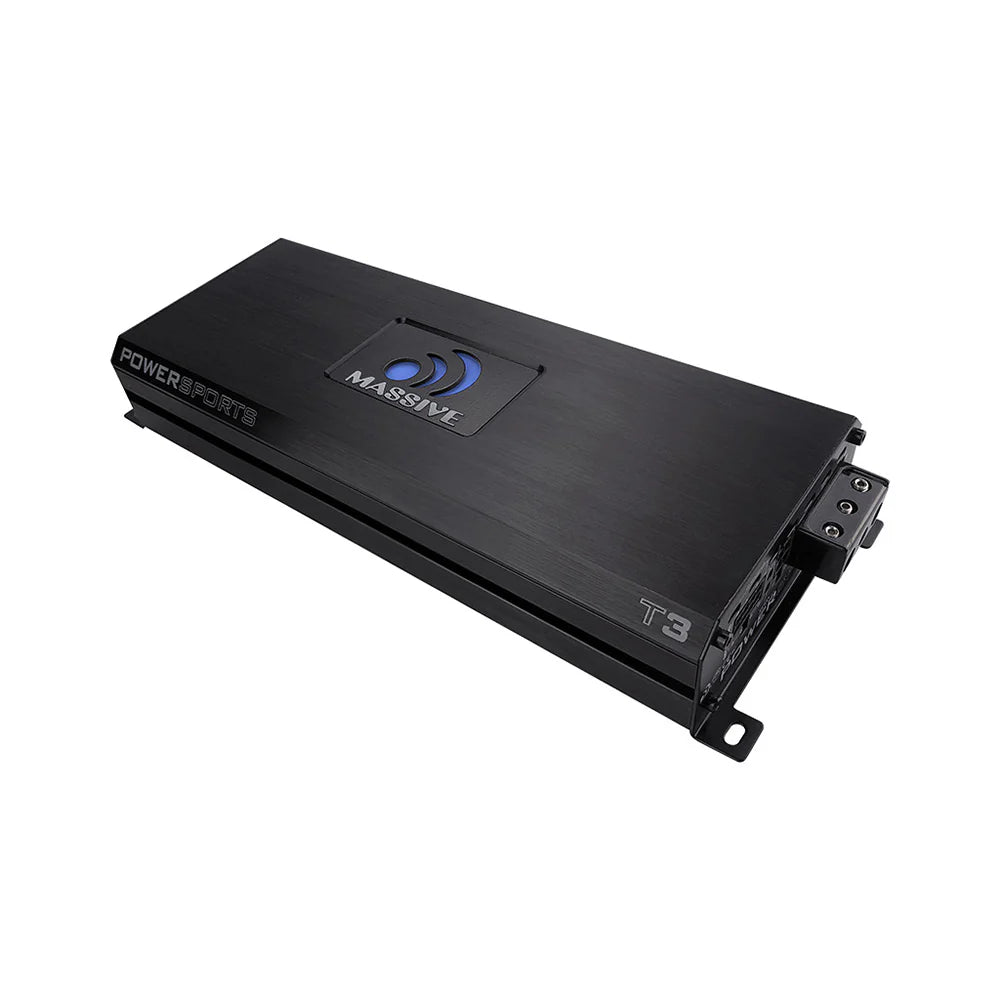

Massive Audio’s TRIDENT Series Amplifiers come dressed for action in their black anodized brushed aluminum heat-sink, punctuated with stainless-steel end caps and a blue backlit logo. Its dimensions are 4.25” W x 1.6” H x 11.5" L, making it both Powerful and diminutive. This 1 Ω stable Mono Block is rated at 1400 Watts X 1Ω and is Water Resistant as a result of its Dura-Coated 320°F Epoxy PCB.

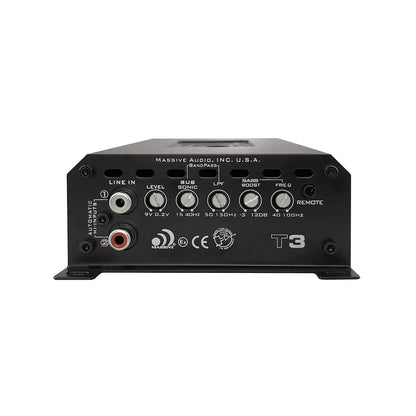

Inside you will find a 4 Layer PCB of Class D design including Surface Mounted parts. Like all Massive Audio Amplifiers, you’ll find our advanced 5 Way Protection Circuitry and a full array of adjustments to adapt to any system configuration. One example is the -3 ~ + 12DB Variable Bass Boost from 40 Hz - 100 Hz.

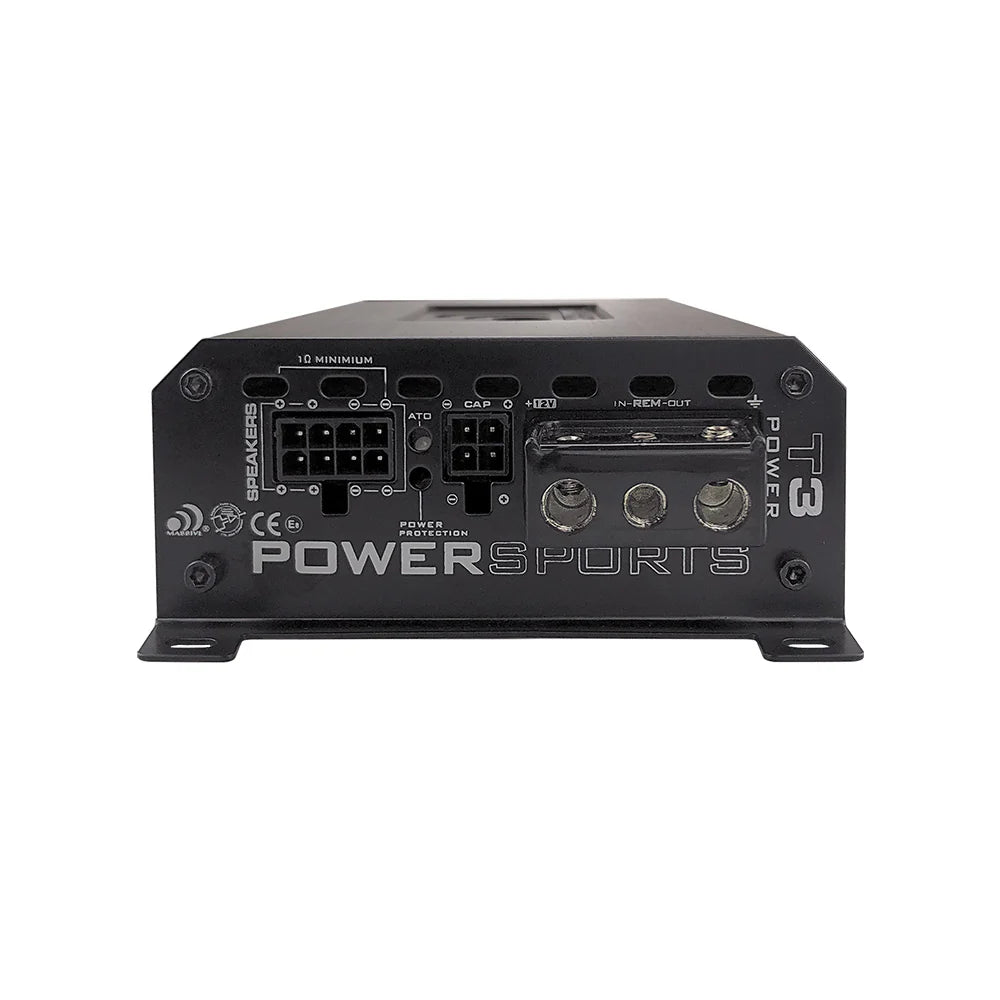

The built-in OEM line converter can handle signals up to 9 volts to activate the Auto Turn On feature eliminating the need for a separate turn on wire. When this ATO is used the 12 volt input converts to a 12 volt output that can activate additional system devices when necessary. The T3 also has a "Docking Port" to plug in an optional Railcap Booster (RCLX) or RCT. An optional Remote Gain control (UR1) is available for purchase.

SPECS:

Peak Output Power @ 14.4V    2800W Max Mono
1 Ohm RMS    1400w X 1
2 Ohm RMS    700W x 1
4 Ohm RMS    450w x 1
4 Ohm Bridged    N/A
Input Level    0.2~9.0v
Freq. Response    10Hz~150KHz
THD at 4 Ohm Load 30% Rated Power    <0.03%
S/N Ratio    >85dB
Bass Boost    40Hz~100Hz
Minimum Load    1 Ohm Mono
Gain Remote    Optional UR1

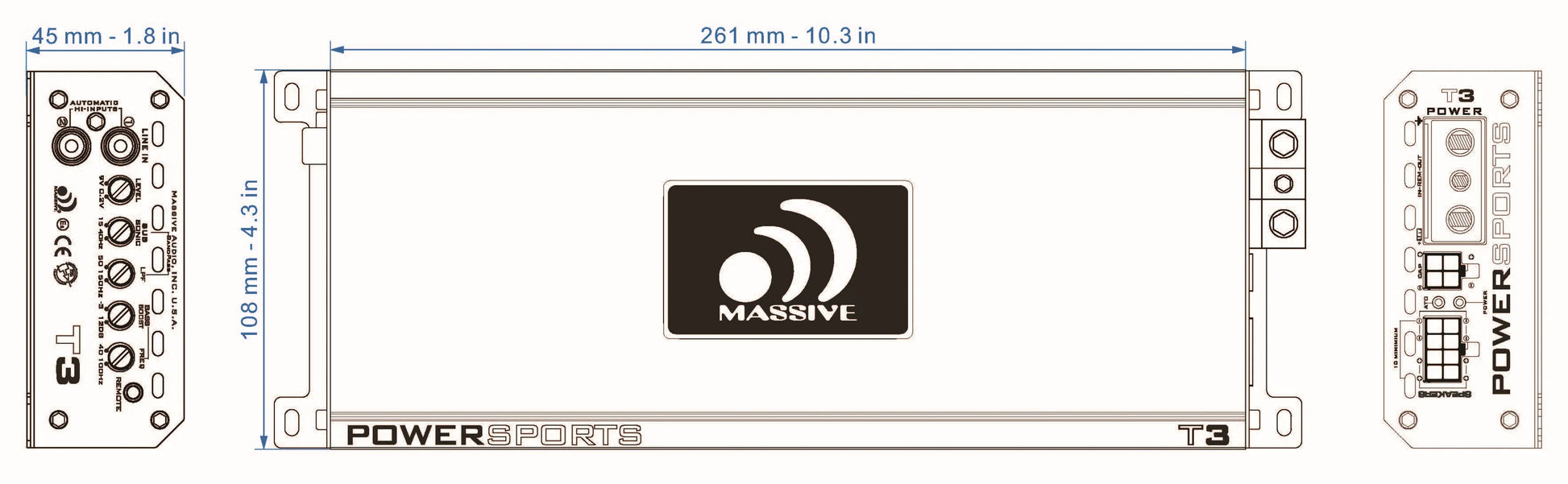

Dimension    1.6"H x 4.25"W x 11.50"L
