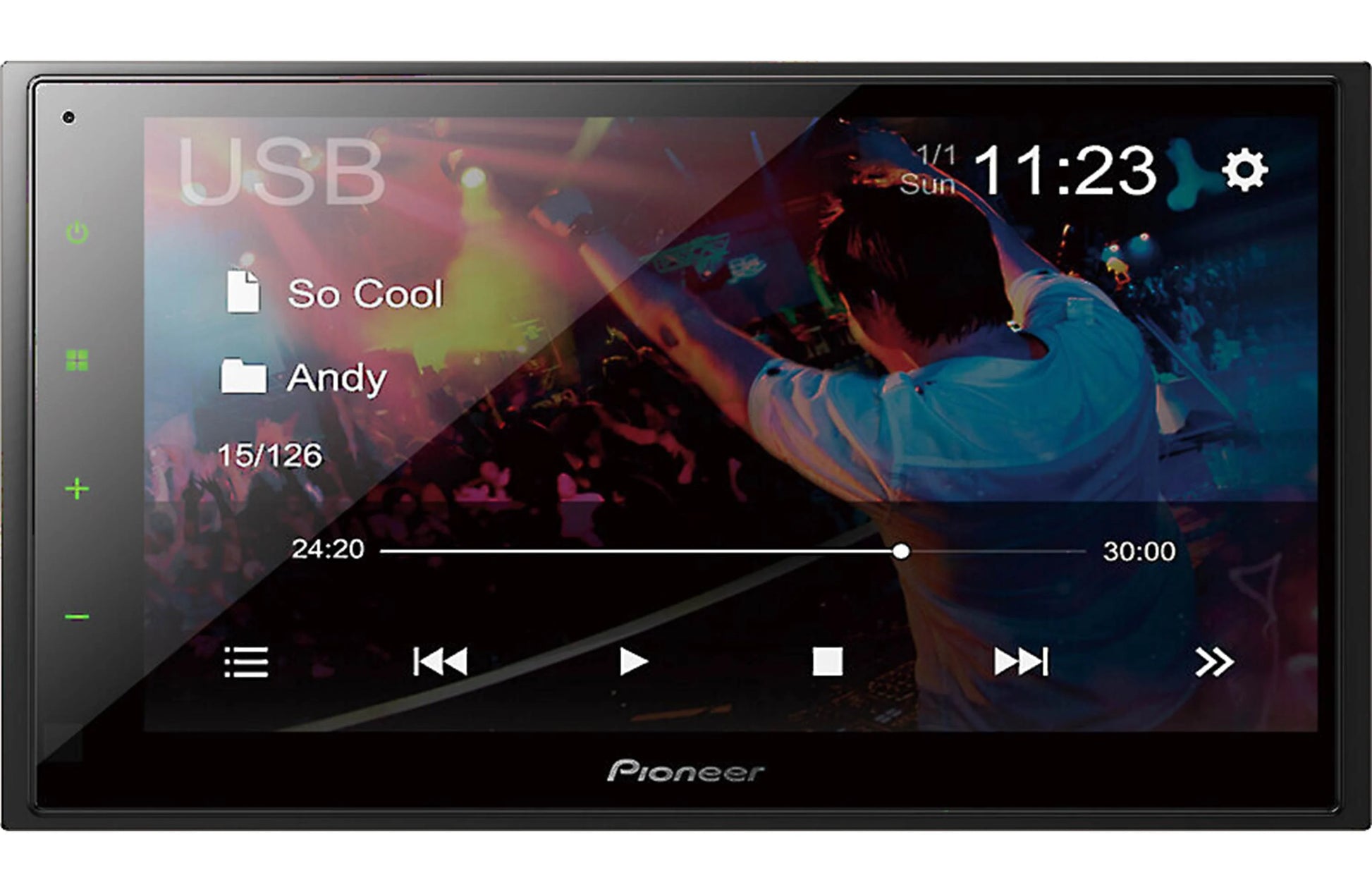

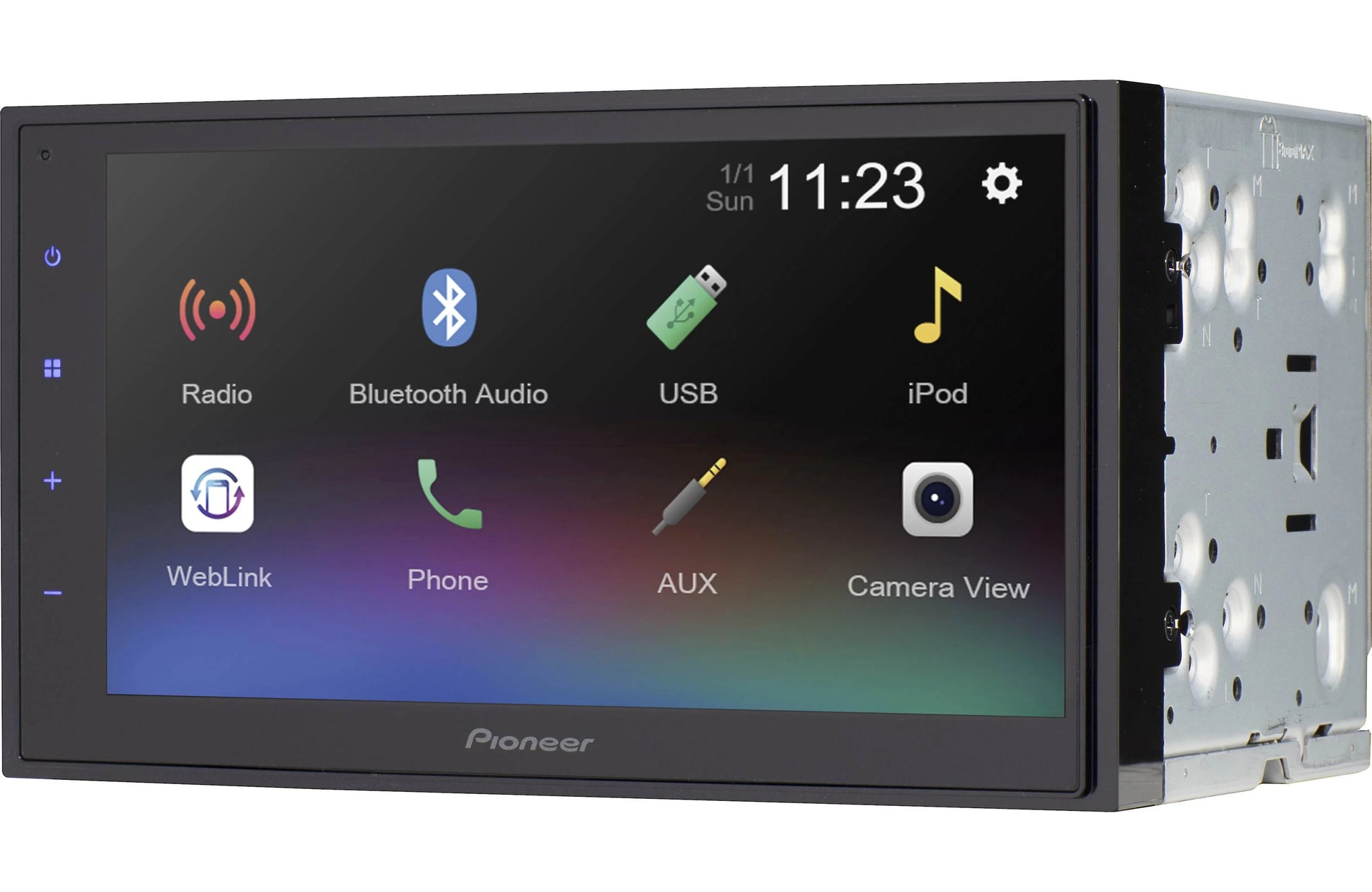

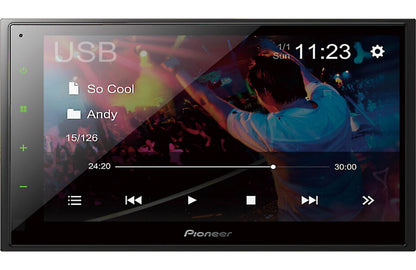

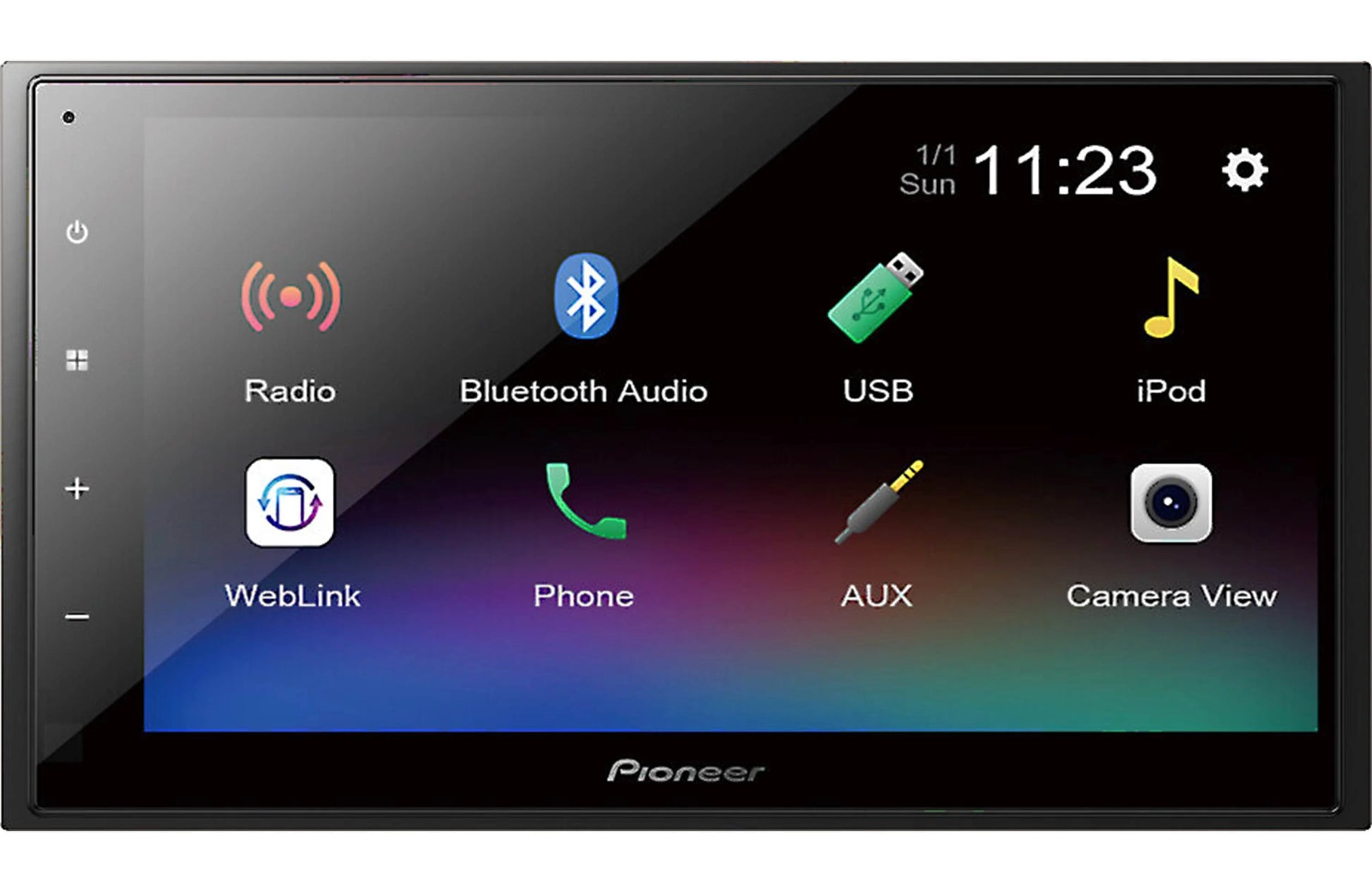

Pioneer DMH-342EX Mechless Receiver 6.8" Display, Bluetooth

6.8" - Weblink® and Amazon Alexa via Pioneer Vozsis, Bluetooth® - Multimedia Digital Media Receiver with back-up camera input.

Double-Din Chassis

6.8" WVGA capacitive display

Weblink®

Amazon Alexa via Pioneer Vozsis

Built-in Bluetooth®

Back-up camera input

PRODUCT PERFORMANCE

Continuous Power Output

22 W x 4-Channel

Load Impedance Allowance

4 Ohm (4 Ohm to 8 Ohm Allowable)

Max Power Output

50 W x 4-ch 4 ohm

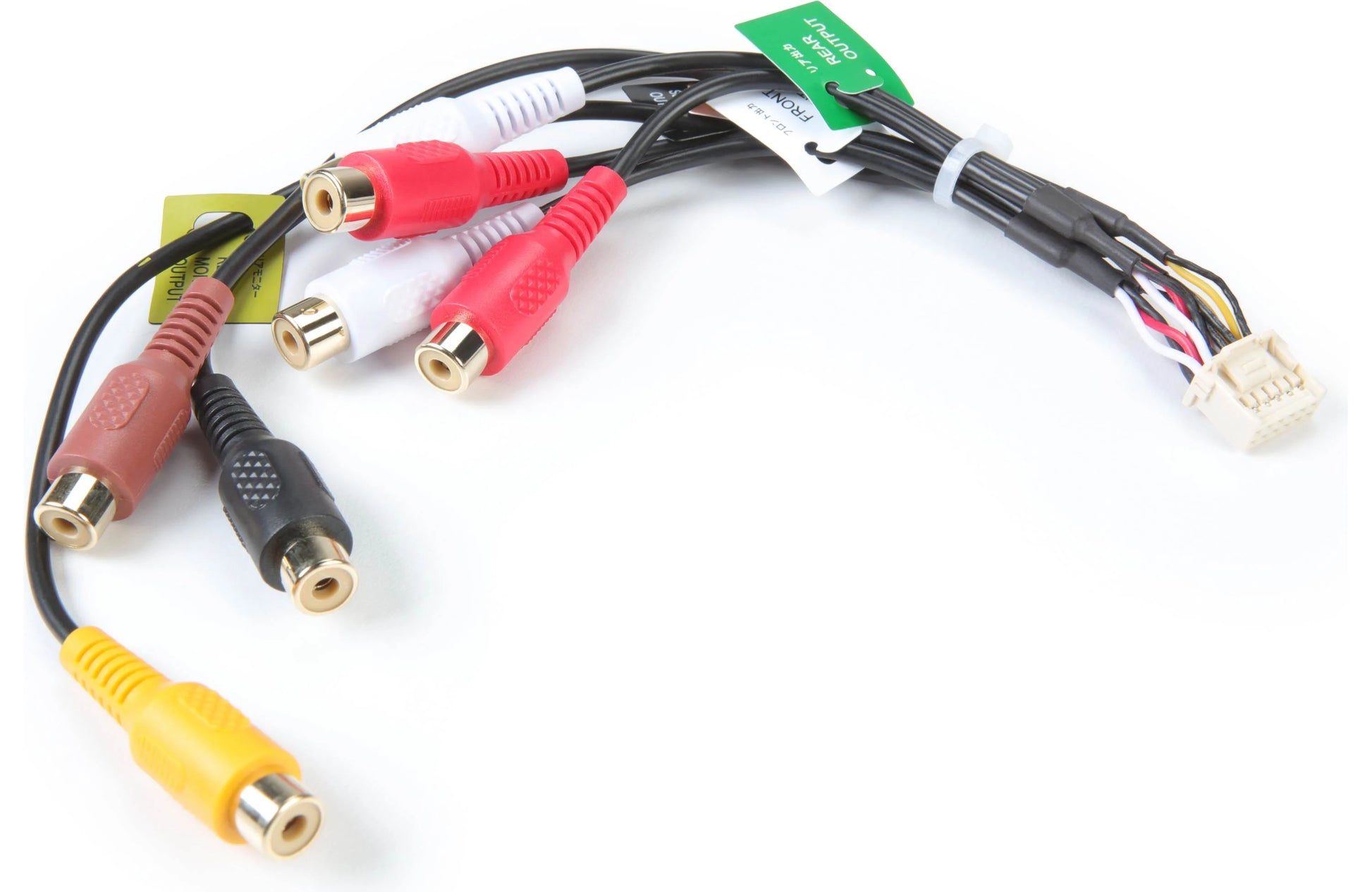

RCA Preamp Outputs

5-ch

RCA Preout Voltage

2V

RMS Power Output (CTA-2006)

14 W RMS x 4-ch 4 ohm

GENERAL

Detachable Face Security

Fixed

Multi-Language Display

English, French, Spanish Portuguese, Chinese (Simplified)

Music Browser

USB

Remote Control

Included

Steering Wheel Control Ready (Adapter Sold Separately)

Yes

DISPLAY

Back Light

LED

Brightness Control

Yes

Color Customization

5 key colors,3 Preset Background Images

Device (Non-DIN/Modular Unit)

2-DIN

Dimmer

Automatic with vehicle illumination, Manual

Display Off Mode

Yes

Monitor Mechanism

Fixed

Resolution

WVGA (800 x 480)

Screen Size/Aspect Ratio

6.8"/16:9

Touch Screen

Capacitive

BLUETOOTH

Advanced Audio Distribution Profile (A2DP)

Yes

AVRCP

1.6

Built-in Bluetooth®

Yes

Hands-Free

Yes

Microphone Included

Included

Phone Registation

5-phone

Secure Simple Pairing (SSP)

Yes

Serial Port Profile (SPP)

Yes

TUNER

Best Station Memory

Yes

Local Seek tuning

Yes

Presets

18 FM 12 AM

PS (Preset Scan)

Hide or display radio station name

RDS

Yes

INTEGRATION

Amazon Alexa

Paired with Pioneer Vozsis

Mobile Operating System

Android,Apple iOS

Pandora®

Bluetooth Audio Source

Pioneer App Compatibility

Vozsis Android, Vozsis iPhone

Siri® Eyes Free (VR) (Internet Required)

iPhone Only

Spotify

Bluetooth Audio Source

Voice Control

Yes

Weblink

2.0

DIGITAL MEDIA PLAYBACK

Audio Playback via USB

AAC Audio Playback,FLAC Audio Playback (Hi-Res),MP3 Audio Playback,WAV Audio Playback (Hi-Res),WMA Audio Playback

Audio Video Playback via USB

.avi,.mpg/mpeg,.mp4,.mkv,.mov,.flv,.m4v,.ts/.m2ts/.mts,H.263,H.264

Image Display Via USB

BMP,JPEG,PNG

AUDIO

Audio Bass Boost

Yes

Balance

Yes

Built-in Amplifier

MOSFET 50 W x 4

Crossover Standard Mode

HPF/LPF

Customizable Graphic Equalizer

13 Band

DA Converter

24 Bit

Digital Signal Processor

Built In

Easy EQ (EEQ) Preset Equalizer

Yes

Loudness

High/Mid/Low/Off

Speaker Output

4-ch

Subwoofer Control

Yes

EXPANDABILITY

Audio Video Inputs

Input 1 - Backup Camera Dedicated,Input 2 - AUX (Minijack)

Firmware upgradability

Yes

RCA-Video-Output

Yes

USB

Single Rear Type-A (5V, 1-1/2 A)

USB Direct Control for iPhone®

5s and newer
