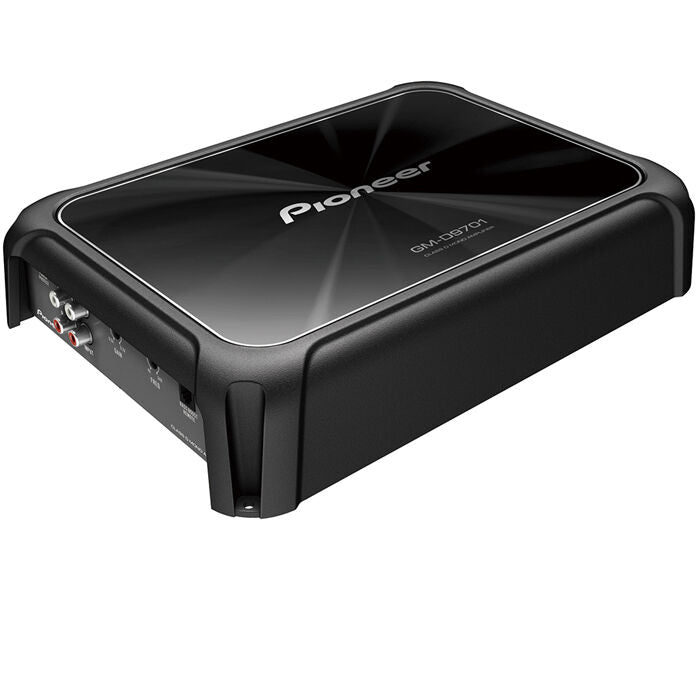

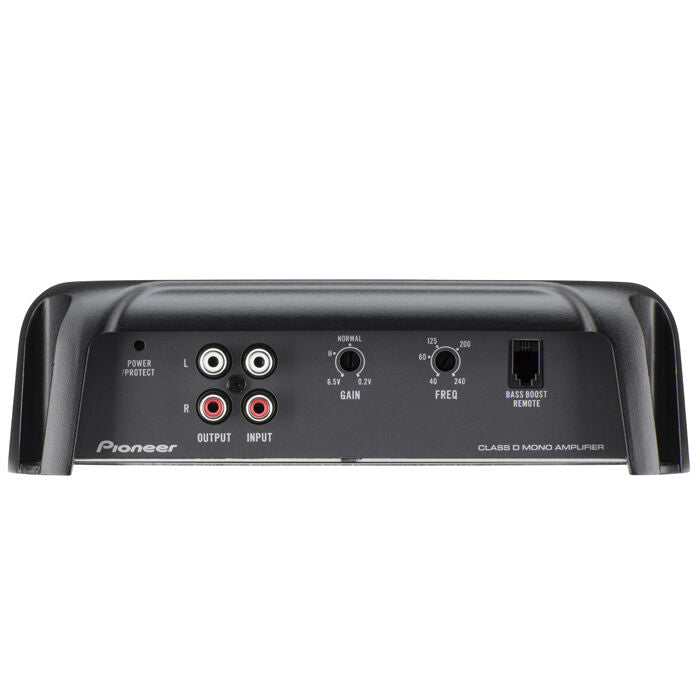

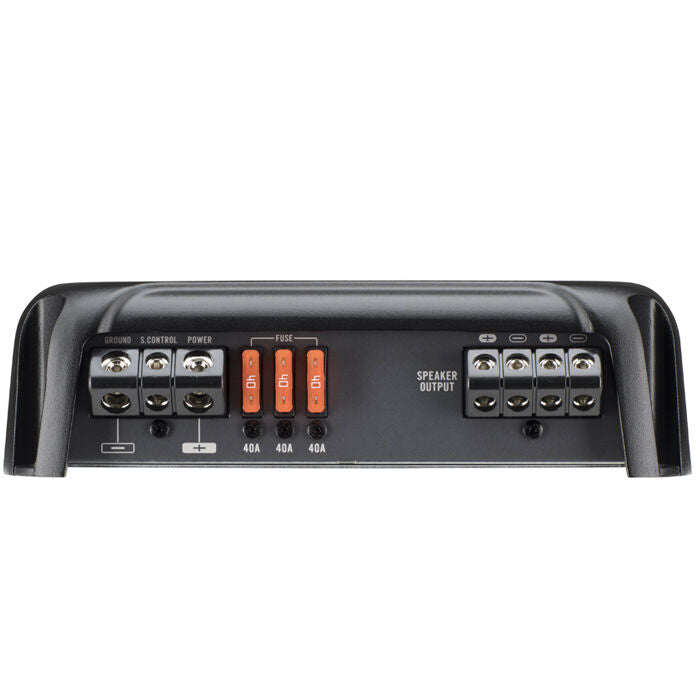

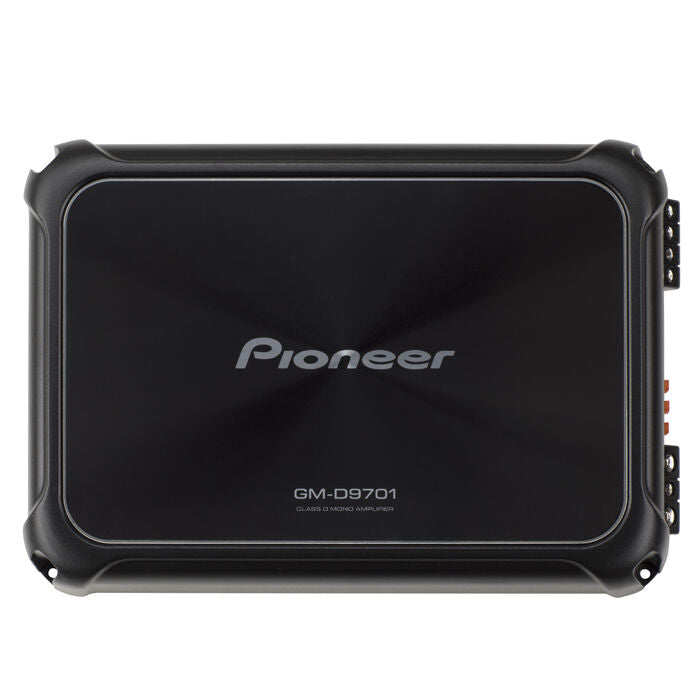

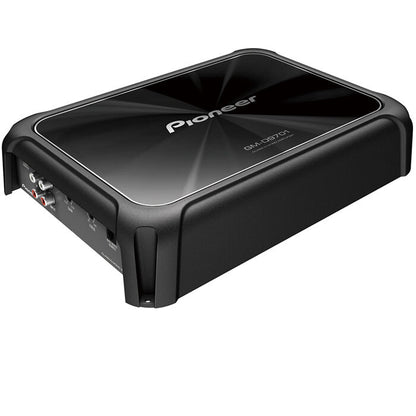

Pioneer GMD9701 Class D Mono Amplifier w Wired Bass Boost Remote 2400 Watts Max

Name: Pioneer GMD9701 Class D Mono Amplifier w Wired Bass Boost Remote 2400 Watts Max
Brand: Factory Direct Car Audio
SKU: GM-D9701
Price: 419.99 USD
Availability: InStock

$419.99 USD

Sale Sold out

20 in stock

Give your system dedicated amplifier power

The Pioneer GMD9701 Class D Mono Amplifier w Wired Bass Boost Remote 2400 Watts Max gives you a dedicated single channel of amplification. Match its supported frequency range and output to the driver configuration in your build.

Key details

Model / SKU: GM-D9701
Continuous Power (RMS) Output at 1 Ohm
1200W RMS x 1
Continuous Power (RMS) Output at 2 Ohms
800W RMS x 1
Continuous Power (RMS) Output at 4 Ohms
500W RMS x 1

Fitment & system matching

Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.

Full product details & specifications

GENERAL

RCA InputsMONO
Amplifer ClassCLASS-D
Speaker Level Inputs
Crossover TypeVariable LPF
2400W Max

SPECIFICATIONS

Continuous Power (RMS) Output at 1 Ohm 1200W RMS x 1
Continuous Power (RMS) Output at 2 Ohms 800W RMS x 1
Continuous Power (RMS) Output at 4 Ohms 500W RMS x 1
Continuous Power (RMS) Output - Bridged at 4 Ohms 10 Hz to 240 Hz
Frequency Response10 Hz to 240 Hz
Total Harmonic Distortion (THD)< 0.5% (100 Hz)
Signal-to-Noise (SN) Ratio> 100 dB
Low-Pass Crossover Frequency 40 Hz
Low Pass Slope (dB/octave)-12dB
High-Pass Crossover Frequency 240 Hz
Bass Boost Frequency 50 Hz
Bass Boost Level 0 dB to 18 dB

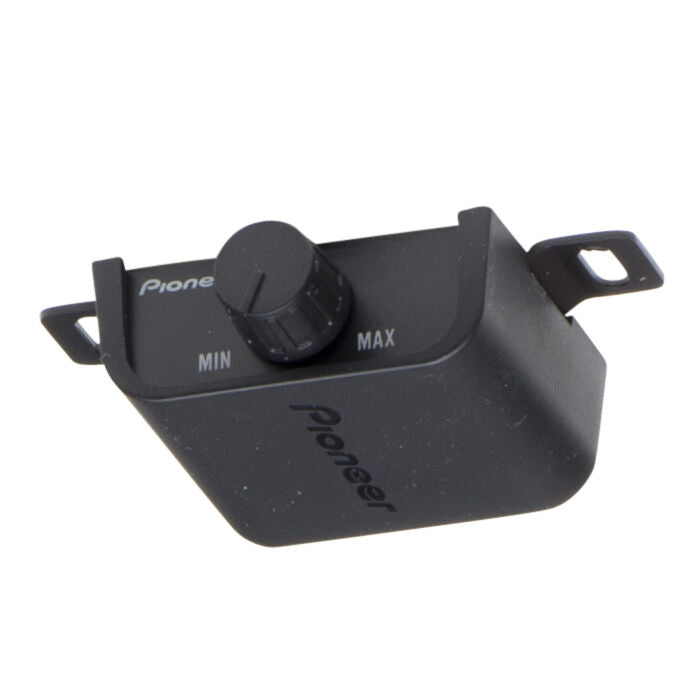

Bass Boost Remote
Hi-Volt Input Level Control 200 mV to 6.5 V
Terminal Type Block
Load Impedance Allowance (Ohms)1 to 8
Protection Control System
Dimensions 12-3/8" x 2-3/8" x 7-7/8"

Need help choosing? Explore our installation services before planning your build.
