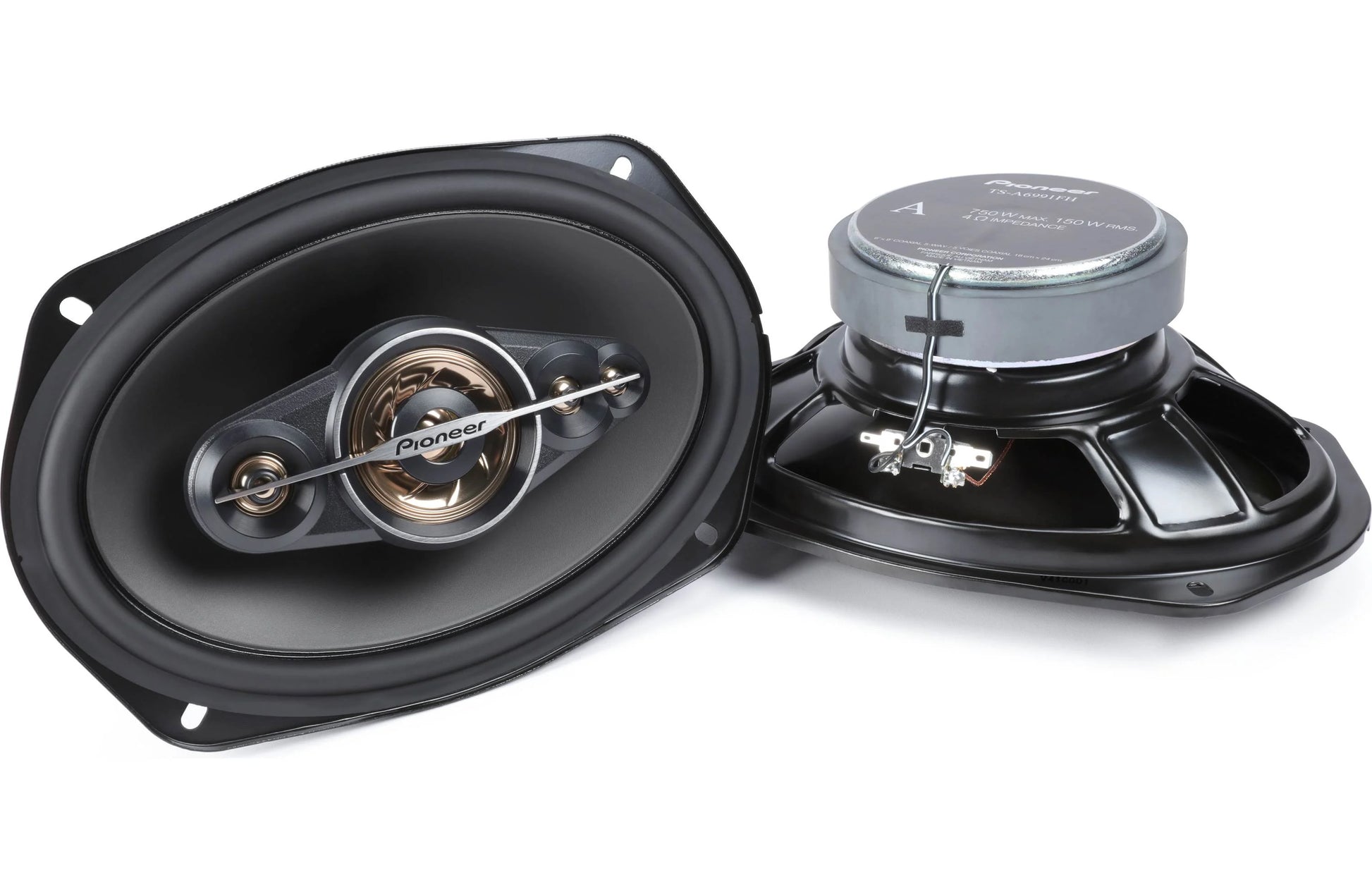

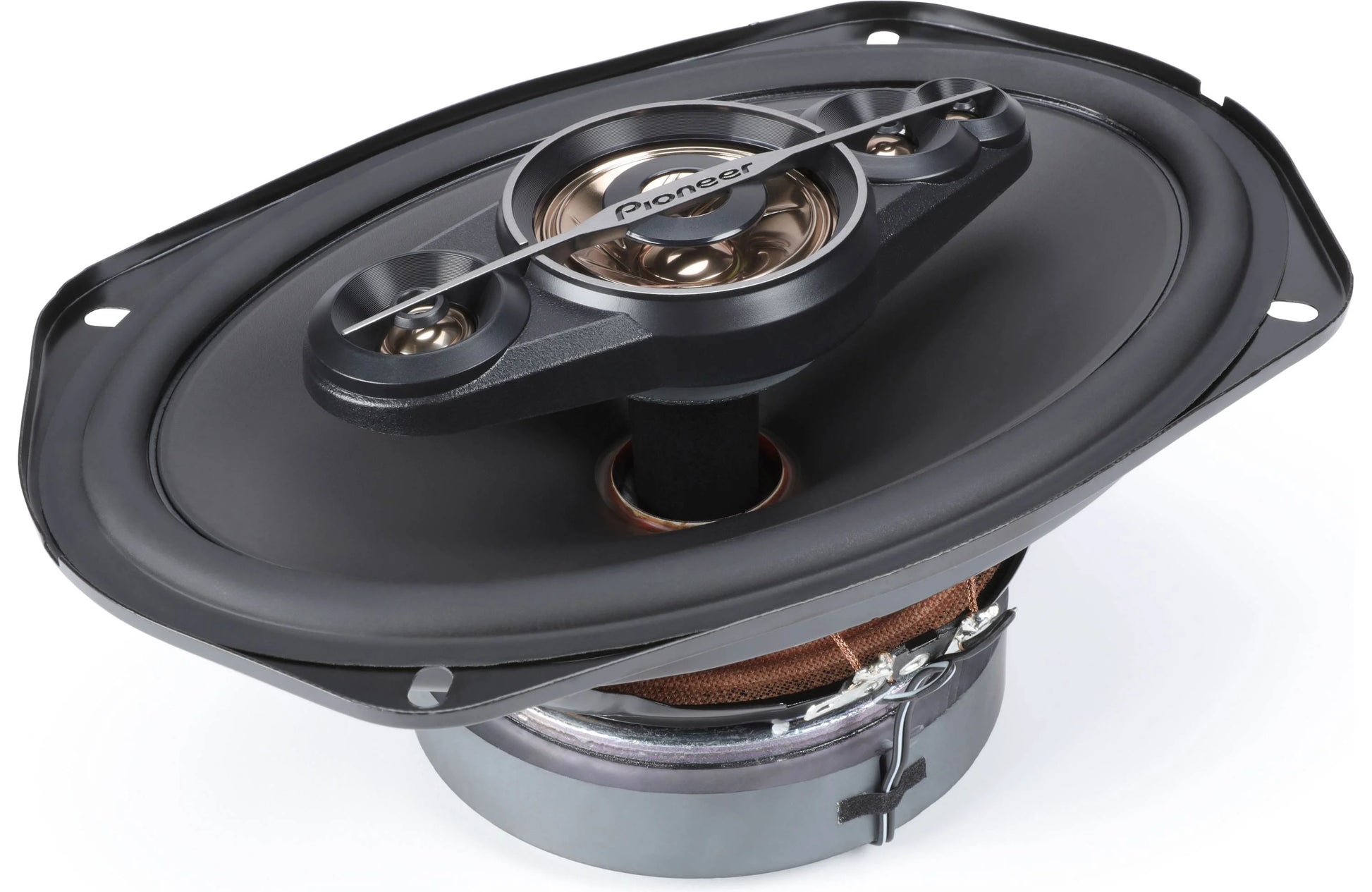

Pioneer TS-A6991FH A-Series + 6"x9" 5-way speakers

Product info:

• 5-way car speakers (pair)
• 6"x9" carbon/mica reinforced injection molded polypropylene woofer cone with rubber surround
• 2-1/4" polyetherimide midrange cone
• polyetherimide 3/4" dome tweeter, 7/16" dome supertweeter, 3/8" dome supertweeter
• handles up to 150 watts RMS (750 watts peak power)
• 29.6-ounce magnet for serious power handling
• frequency response: 29-31,000 Hz
• sensitivity: 93 dB
• impedance: 4 ohms
• top-mount depth: 3.388"

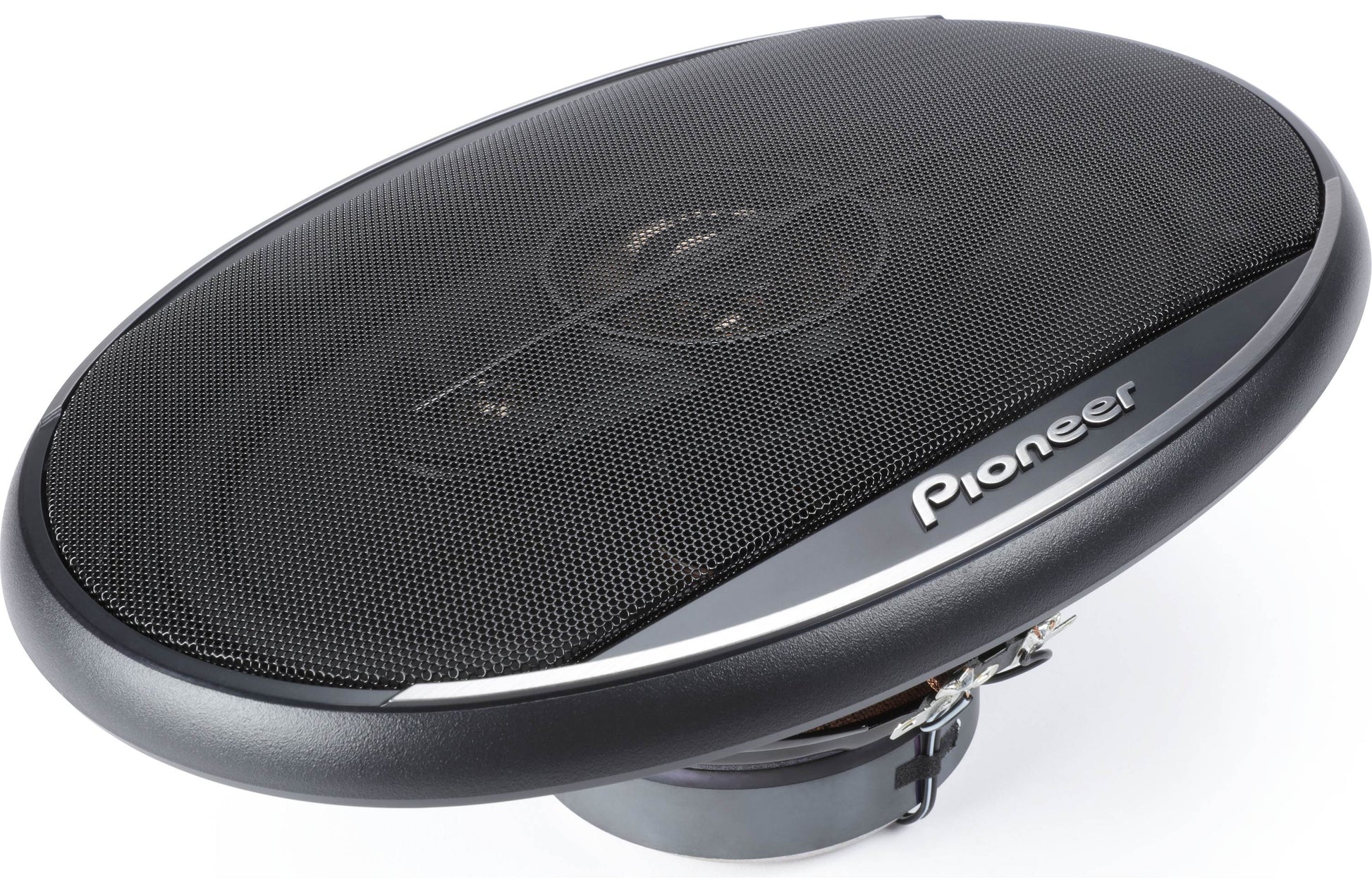

• black steel mesh grilles included
• warranty: 1 year

TS-A6991FH 6x9" Speakers - sold in pairs
Features

750 Watts Max. Power / 150 Watts Nominal Power

6”x9" Carbon and Mica reinforced IMPP™ cone

2-1/4" (57mm) polyetherimide (PEI) cone midrange

18mm PET hard dome Tweeter

11mm & 9mm PET hard dome Super Tweeters

Frequency range: 29 Hz to 31 kHz

Speaker Impedance: 4 ohms

Speaker Efficiency: 93 dB (1W/1M)

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts
150
Frequency Response
29 Hz to 31 kHz
Maximum Peak Power Handling - Watts
750
Nominal Impedance - Ohm
4-Ohm
Sensitivity (1W/1m)
93 dB
System-Type
Coaxial 5-way, Triple Polyethylene terephthalate (PET) dome - Tweeter
FEATURES
Cut Out dimensions
8-3/4" x 6"
Mounting Depth
3-3/8"/85.7mm
Speaker Grill
Included
Tweeter Dimensions
0.71", 0.43" Super, 0.35" Super
Woofer Dimensions
6" x 9"
MATERIALS
Basket Material
Iron Plate Press
Cone Material
Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Damper
Poly cotton Aramid
Diaphragm Material
Polyetherimide (PEI) - Midrange
Magnet Material
Ferrite - Woofer, Ferrite - Midrange
Magnet Weight
15.2 oz - Woofer, 1.4 oz - Midrange
Surround Material
Elastic Polymer
Surround Type
Rolled
Voice Coil Bobbin
Glass Imide
Voice Coil wire
Copper
Wire Terminals
Lug Type
